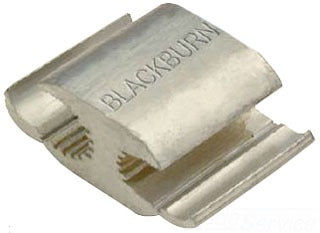

THOMAS & BETTS WR279 Aluminum Wide Range H-Type Compression Connector Main: 2/0-1 ACSR, 3/0-1/0 Str., 4/0-2/0 Sol. Tap: 2/0-1 ACSR, 3/0-1/0 Str., 3/0-2/0 Sol.

Product Description

The THOMAS & BETTS WR279 aluminum wide range H-type compression connector is built for reliable electrical connections. This connector is suitable for a variety of applications in the electrical industry, specifically for grounding and bonding tasks.

• Connects multiple conductor sizes efficiently.
• Made from durable aluminum alloy for optimal performance.
• Features an oxide inhibitor to enhance contact quality.

Product Highlights

Designed for use with 2/0 to 1 ACSR and 3/0 to 1/0 stranded conductors, the WR279 is ideal for various wire connections.

Product Information

Standard Information

• Manufacturer: THOMAS & BETTS
• Part Number: WR279

Technical Specifications

• Body Material: 1350 Aluminum Alloy
• Conductor Material: Aluminum/Copper
• Maximum Run Conductor Size: 2/0 AWG ACSR, 3/0 AWG Stranded, 4/0 AWG Solid
• Maximum Tap Conductor Size: 2/0 AWG ACSR, 3/0 AWG Stranded
• Minimum Run Conductor Size: 1 AWG ACSR, 1/0 AWG Stranded
• Minimum Tap Conductor Size: 1 AWG ACSR, 1/0 AWG Stranded
• UNSPSC Code: 39121400
• Die Index: D
