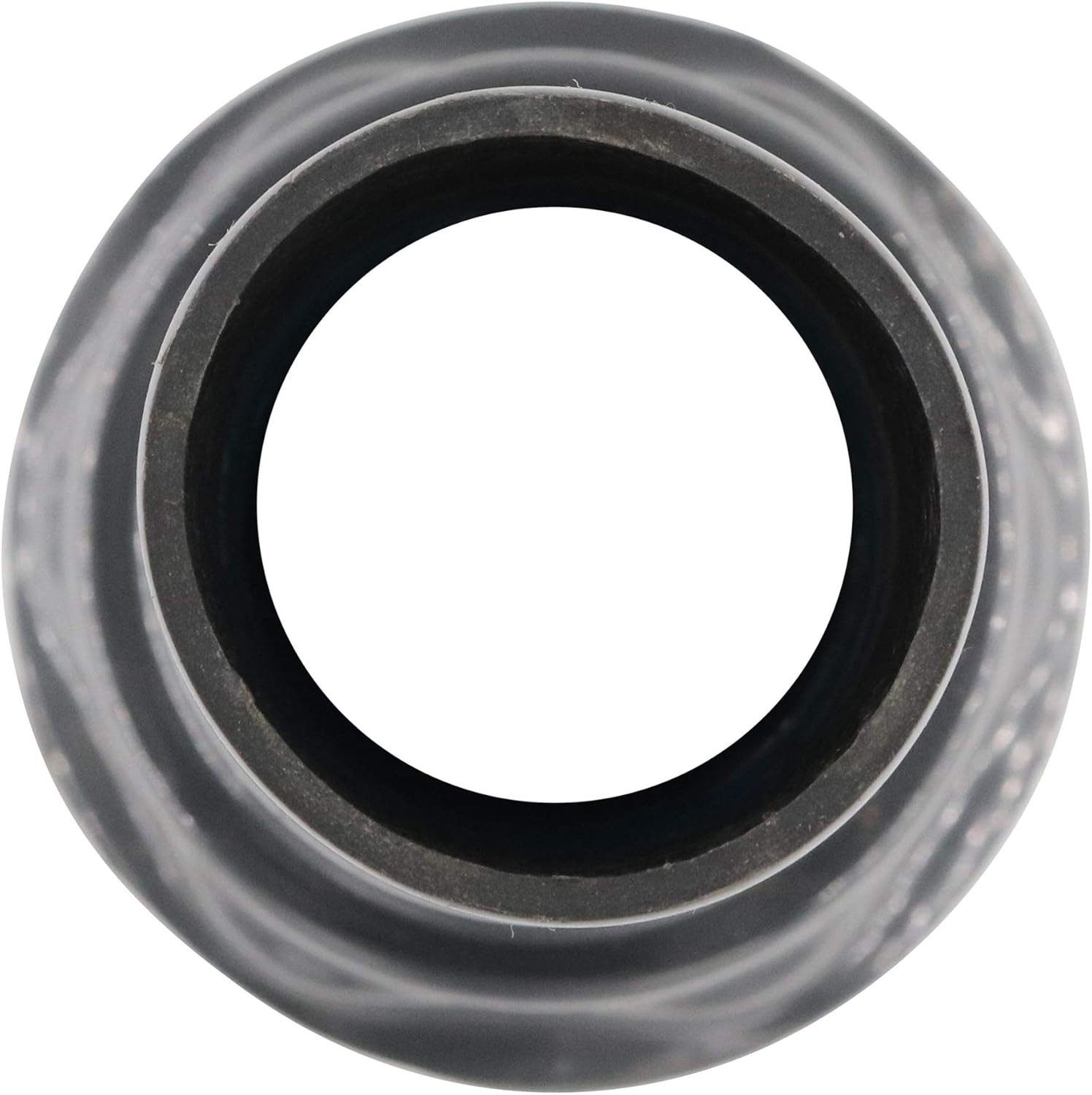

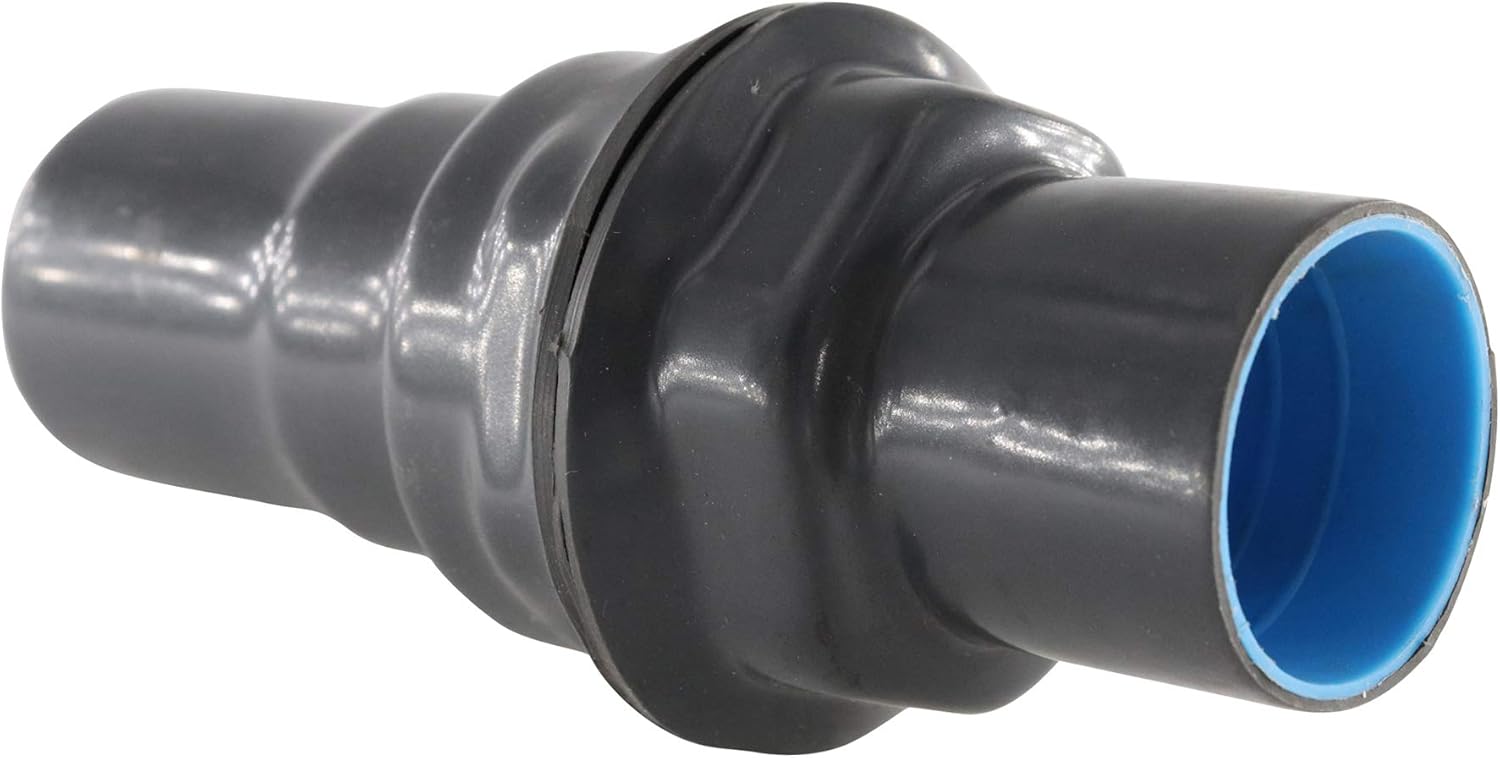

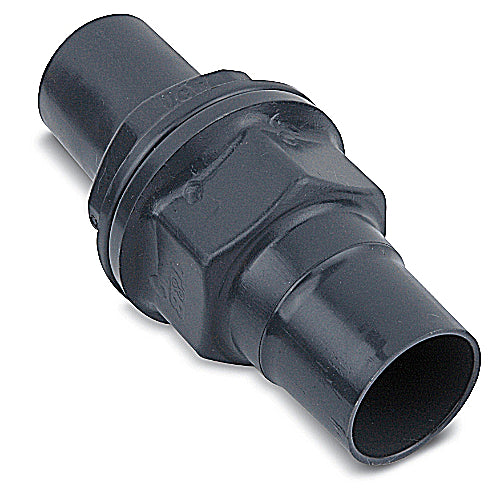

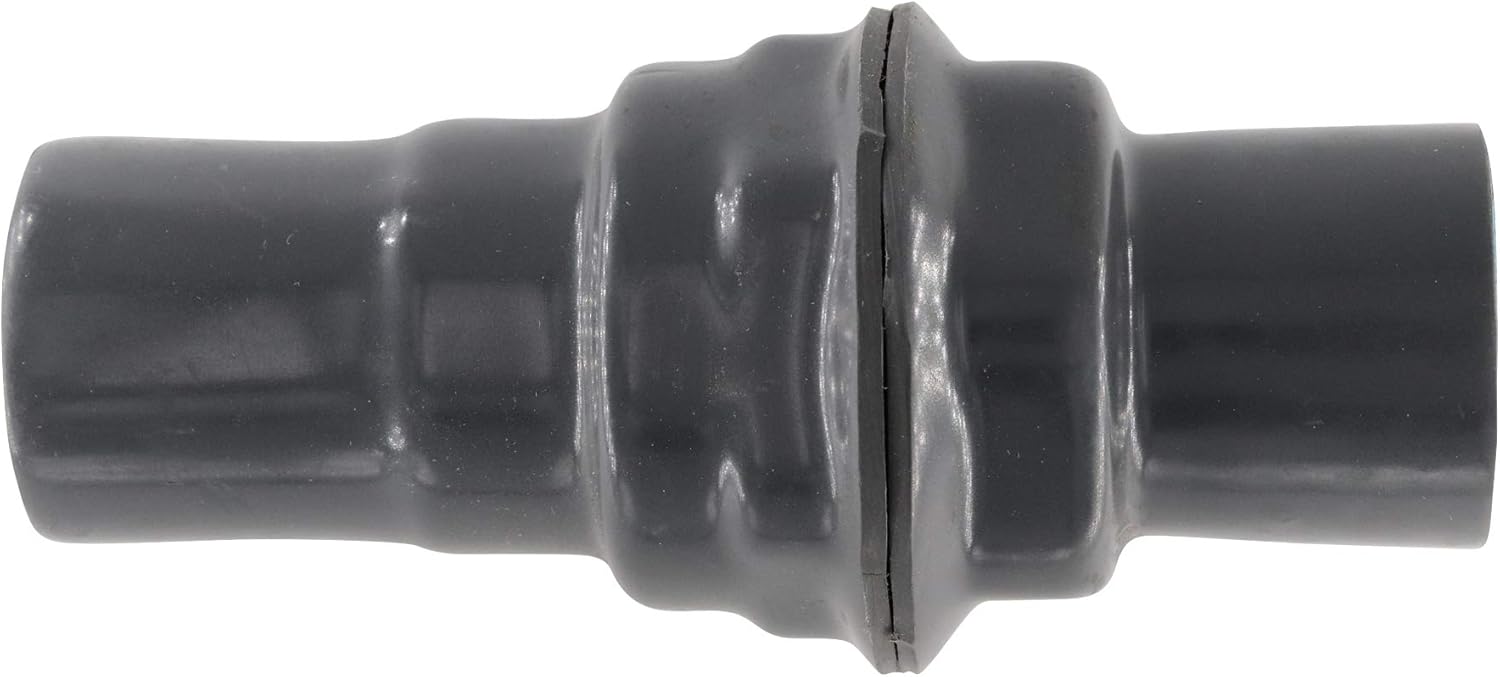

Thomas & Betts UNF305-G OCAL Explosion Proof PVC-Coated UNF Conduit Union, Female-Female, 1-Inch

Product Description

The Thomas & Betts UNF305-G OCAL explosion-proof PVC-coated UNF conduit union is a female-female, 1-inch union. It connects conduit to conduit or provides a means for future modification of a conduit system in hazardous and non-hazardous locations. The union installs in threaded thick wall conduit systems in hazardous areas.

• Pressure sealing sleeves protect connections
• Compact design permits assembly with minimum clearance
• Double coated with urethane and PVC for protection

Product Highlights

Explosion-proof and dust-ignition-proof, this UNF female union is ideal for connecting conduits in hazardous environments, ensuring secure and reliable connections.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: UNF305-G
• Country of Origin: US - United States

Technical Specifications

• Color: Gray
• Finish: PVC Coated
• Material: Steel
• Thread Size: 1 inch
• Thread Type: UNF
• Connector Type: Union
• Exterior Finish: PVC
• Number of Pieces: 1
• Part Number #: UNF305-G
• Type: 3-Piece Dust-Ignitionproof Female
• Brand: ABB
• Standard: CSA,UL 1203
• Connection Type: Female
• Trade Size: 1 Inch
• Sub Brand: Ocal®
• Product UPC: 70450841302
• Length: 2.16 Inch
• Outside Diameter: 2.00 in
• Use With: PVC Coated Conduit
• Throat Type: Non-Insulated
