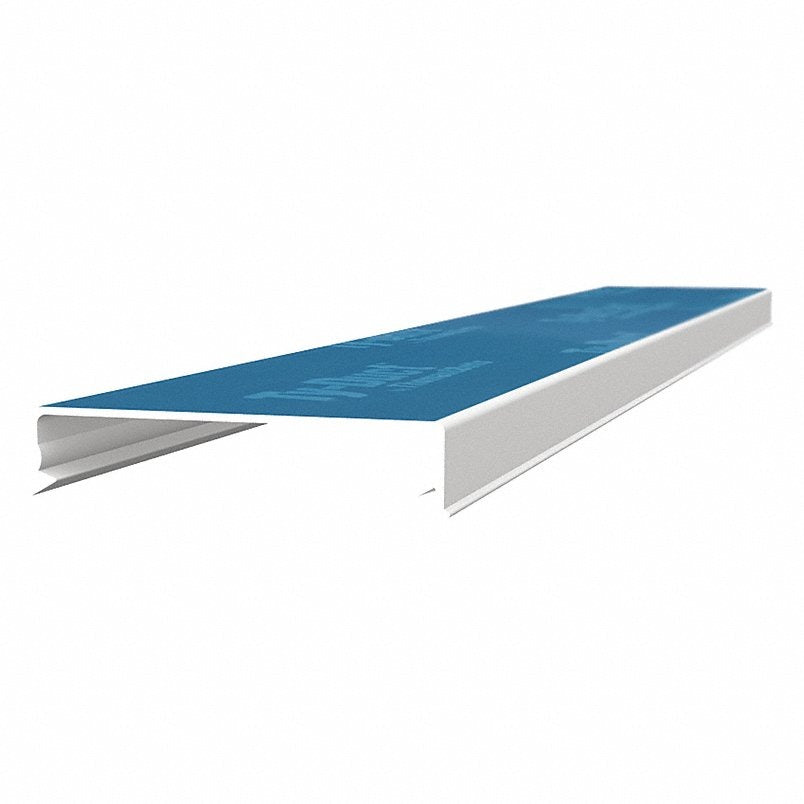

Thomas Betts tyd2cpw6 Wiring Duct Cover 72 in White Pvc

Product Description

The THOMAS BETTS tyd2cpw6 is a snap-on wiring duct cover made from PVC and designed to enclose and protect conductors routed through open-slot wiring ducts. At 72 inches in length, this cover spans a full section of duct and snaps into place without tools, making it a practical choice for panel builders, machine wiring technicians, and electricians working in control enclosures or industrial panels. The flush-mount style sits cleanly against the duct surface, and the white PVC construction is lightweight, non-conductive, and rated UL 94V-0 for flame resistance.

This cover is intended for use with 2 inch nominal wiring duct in control panels, electrical enclosures, and industrial automation cabinets. It keeps bundled conductors shielded from dust and debris while still allowing access for maintenance or future wire routing. The snap-on design allows the cover to be removed and reinstalled repeatedly without damaging the duct or the wiring inside. It is a standard component in any panel layout where conductor management and cleanliness are required.

Key Features

• Snap-on installation requires no additional fasteners or tools
• 72 inch length covers a full duct section in a single piece
• PVC construction is non-conductive and corrosion resistant
• UL 94V-0 flame rating meets common panel and enclosure requirements
• Flush mounting style provides a clean, finished appearance
• CE Compliant and CSA Certified for use in North American and international applications

Compatibility

Designed for use with 2 inch nominal wiring duct; cover width is 2.25 inches to accommodate the duct profile with a flush mount fit.

Installation Notes

Electrical technicians and panel builders typically install wiring duct covers after all conductors are routed and dressed. De-energize the panel and follow applicable NFPA 70 (NEC) lockout/tagout procedures before working inside any live enclosure. The snap-on cover should be pressed evenly along its length to seat fully into the duct retaining lips. Do not force or bend the cover, as PVC can crack under stress if misaligned during installation.

Technical Specifications

• Material: PVC
• Color: White
• Length: 72 inches
• Cover Width: 2.25 inches
• Nominal Duct Width: 2 inches
• Mounting Style: Flush
• Flame Rating: UL 94V-0
• Standards: CE Compliant, CSA Certified, UL 94V-0
• Country of Origin: USA (subject to change)

Standard Information

• Brand: THOMAS BETTS
• Manufacturer Part Number: tyd2cpw6
