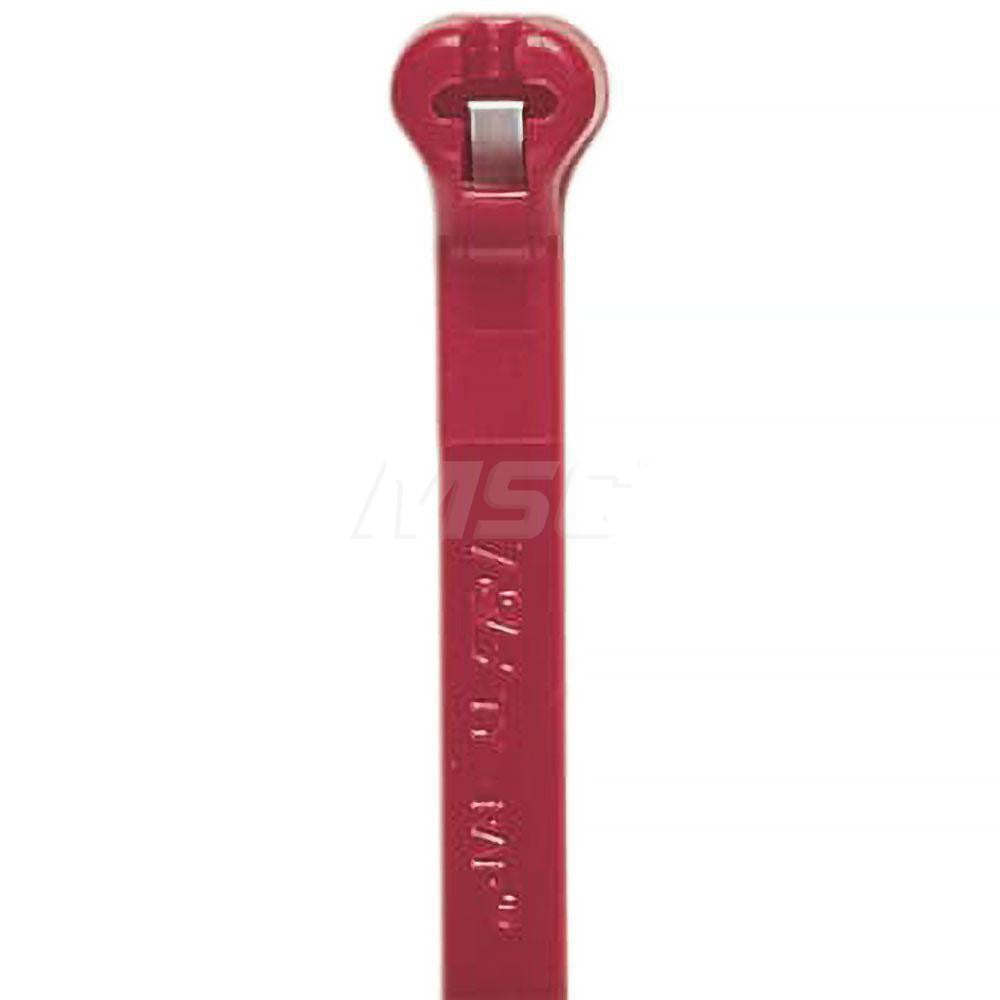

Thomas Betts TY5253M-2 Red Cable Tie 50 Lb 100 Pack

Product Description

The THOMAS BETTS TY5253M-2 is a standard barbed cable tie made from polyamide (nylon), available in red and sold in packs of 100. At 11.4 inches in overall length with a 0.19-inch width and 0.05-inch thickness, it delivers a 50 lb tensile strength rating suitable for securing wire bundles in electrical panels, conduit runs, and mechanical assemblies. The barbed locking mechanism provides a secure, one-way hold. This tie is rated for service from -40 degrees F to 185 degrees F, making it appropriate for a wide range of indoor and outdoor installations. Electrical contractors, HVAC technicians, and industrial maintenance professionals routinely use this product for organized wire management.

This cable tie is suited for residential, commercial, and light industrial wiring and bundling applications. It handles bundle diameters up to 3 inches, covering most standard wire harness and conduit grouping scenarios. The red color supports color-coded identification systems commonly used in electrical and data installations. Its plenum rating (AH-2) makes it appropriate for use in air-handling spaces where fire and smoke propagation requirements apply under building and electrical codes.

Key Features

• 50 lb tensile strength for reliable bundle retention
• 11.4-inch length accommodates bundle diameters up to 3 inches
• Polyamide (nylon) construction resists moisture and common chemicals
• Red color enables color-coded wire identification systems
• AH-2 plenum rated for air-handling space installations
• Wide temperature range: -40 degrees F to 185 degrees F
• Multi-standard certified: UL Listed, CSA, MIL-SPEC MS3367-7-2, EN, CSA62275 Type 2, 21S

Compatibility

Designed as a standard barbed cable tie for general electrical, HVAC, and mechanical wire bundling applications requiring a 50 lb tensile strength, 11.4-inch tie with plenum-rated polyamide construction.

Installation Notes

Cable ties of this type are installed by electrical and HVAC technicians using a cable tie tensioning and cutting tool or by hand. Ensure the locking tab is fully seated before trimming the tail flush to avoid sharp edges. In plenum spaces, confirm that all bundling materials used meet local AHJ requirements under NEC or applicable building code. Do not over-tension ties on sensitive wire insulation.
