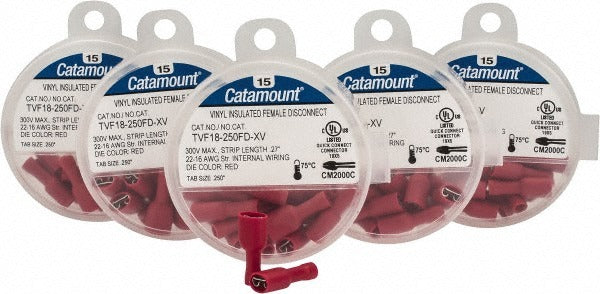

Thomas Betts TVF18-250FD-XV Female Wire Disconnect 75pk

Product Description

The THOMAS BETTS TVF18-250FD-XV is a fully insulated female wire disconnect terminal designed for fast, reliable electrical connections in control wiring, panel builds, and field wiring applications. The vinyl insulation is color-coded red, indicating compatibility with 22-16 AWG wire, and provides full coverage over the crimp barrel to protect against incidental contact and short circuits. The 1/4 inch tab width accepts standard 0.25 inch male quick-disconnect tabs. This terminal is sold in a package of 75 pieces and is suited for electricians, panel builders, and industrial maintenance technicians working on low-voltage control circuits.

This disconnect terminal is used in residential and light commercial electrical panels, HVAC control wiring, appliance wiring harnesses, and general-purpose low-voltage control circuits. The fully insulated vinyl body protects exposed conductor ends after crimping, making it appropriate for applications where terminals may be routed near other conductors or metal enclosure surfaces. It is a standard stocking item for electrical contractors and panel shops that work with 22-16 AWG stranded or solid hookup wire.

Key Features

• Fully insulated vinyl construction provides complete barrel coverage and insulation protection
• Red color coding identifies 22-16 AWG wire range at a glance
• 1/4 inch tab width accepts standard quarter-inch male quick-disconnect blades
• RoHS compliant materials meet current environmental standards for hazardous substance restriction
• UL 94 V-0 rated vinyl insulation meets vertical flame test requirements
• Package of 75 pieces supports production and service quantities

Compatibility

Designed for use with 22-16 AWG wire and standard 1/4 inch male quick-disconnect tab terminals in low-voltage control and general wiring applications.

Installation Notes

Installation requires a ratcheting or hand crimp tool rated for insulated vinyl disconnect terminals in the 22-16 AWG range. Strip wire to the length specified by the crimp tool manufacturer before insertion. De-energize the circuit fully before installing or removing any terminal connector. Follow NEC guidelines for conductor sizing, termination methods, and enclosure wiring practices.
