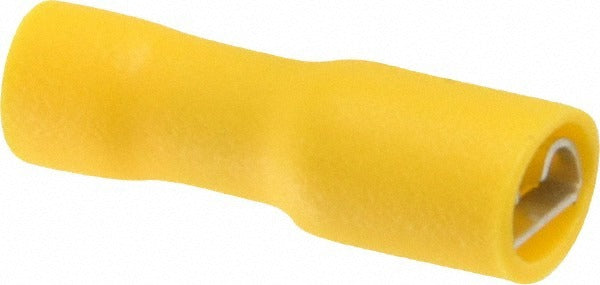

Thomas Betts TVF10-250FD-XV Female Disconnect 12-10 Awg

Product Description

The THOMAS BETTS TVF10-250FD-XV is a fully insulated female wire disconnect designed for reliable quick-connect terminations in electrical wiring applications. The connector features a yellow vinyl insulation sleeve that fully covers the crimp barrel, providing both electrical insulation and a visual indicator for the 12-10 AWG wire range. The 1/4 inch tab width accepts standard male quick-disconnect tabs commonly used in control wiring, appliance wiring, and low-voltage circuit terminations. This package contains 75 connectors, suited for service technicians and electricians working on high-volume wiring tasks.

These female disconnect terminals are used in residential and light commercial wiring scenarios where fast, tool-released connections are required. Typical applications include HVAC control board wiring, appliance harness repairs, panel sub-assemblies, and electrical service work. The yellow color coding identifies the 12-10 AWG wire range at a glance, helping technicians sort and select connectors quickly during installation or repair. The vinyl insulation provides adequate protection in low-temperature, dry indoor environments.

Key Features

• Fully insulated vinyl sleeve covers the entire crimp barrel for electrical protection
• Yellow insulation color codes the 12-10 AWG wire range for fast field identification
• 1/4 inch tab width fits standard male quick-disconnect tab terminals
• RoHS compliant materials meet environmental compliance requirements
• UL 94 V-0 rated insulation material for flame-retardant performance
• Package quantity of 75 supports multi-connection jobs and service stock

Compatibility

Designed for use with 12-10 AWG conductors and standard 1/4 inch male quick-disconnect tab terminals in residential and light commercial electrical wiring applications.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician following applicable NEC guidelines. De-energize the circuit fully before terminating or servicing any connections. Use a calibrated ratcheting crimp tool sized for the 12-10 AWG range to ensure a secure, gas-tight crimp on the conductor. Inspect the vinyl insulation sleeve after crimping to confirm it has not split or pulled back from the barrel.
