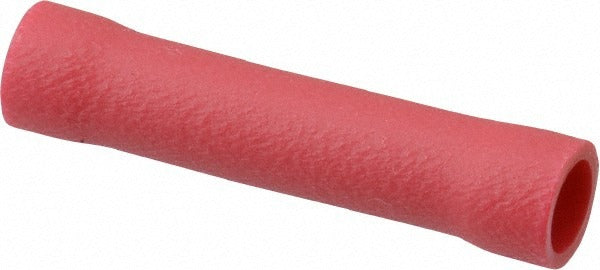

Thomas Betts TV18-BS-XV Butt Splice Terminal Vinyl 75 Pack

Product Description

The THOMAS BETTS TV18-BS-XV is a fully insulated, crimp-on butt splice terminal designed for making secure, in-line wire connections in electrical wiring applications. The terminal features a vinyl insulation jacket rated to UL 94 V-0 flame standards and is constructed with a copper contact for reliable conductivity. At 0.986 inches in overall length and 0.157 inches in overall diameter, this compact splice terminal is suited for tight wiring runs. Each package contains 75 terminals. Licensed electricians and instrumentation technicians install these terminals using standard ratchet or hand crimp tools appropriate for the wire gauge range.

This butt splice terminal is used in residential, commercial, and light industrial electrical work wherever two wire ends must be joined end-to-end within a harness, panel, or conduit run. The red color coding identifies the wire gauge range for quick visual verification during installation and inspection. Typical applications include control panel wiring, HVAC low-voltage circuits, appliance harness repair, and general electrical maintenance work where a clean, insulated splice is required without a wire nut or open connection.

Key Features

• Fully insulated vinyl jacket rated UL 94 V-0 for flame resistance
• Crimp-on connection type for fast, tool-based termination without soldering
• Copper contact material for solid electrical conductivity
• Red color coding for quick wire gauge identification in the field
• CSA Certified and RoHS Compliant for use in a wide range of installations
• Sold in a 75-piece package suitable for service stock or job-site use

Compatibility

Designed as an OEM-style crimp butt splice terminal for use with standard hand or ratchet crimp tools compatible with insulated terminals in the applicable wire gauge range.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements. De-energize and lock out the circuit before making any wire terminations. Use a calibrated ratchet crimp tool rated for insulated vinyl terminals to ensure a full, consistent crimp — do not use pliers or uncalibrated tools. Inspect the finished crimp to confirm the insulation sleeve is intact and no bare conductor is exposed at either end of the splice.
