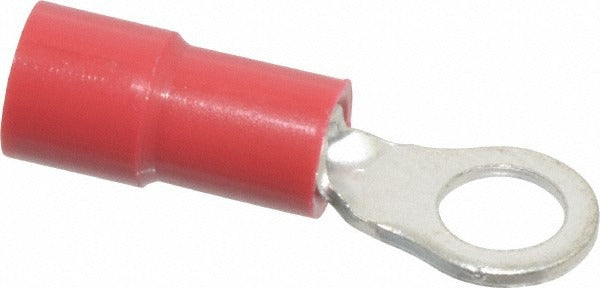

Thomas Betts TV18-8R-XV Ring Terminal 22-16 Awg Crimp 8 Stud

Product Description

The THOMAS BETTS TV18-8R-XV is a partially insulated circular ring terminal designed for crimped wire terminations on 22 to 16 AWG copper conductors. The red vinyl insulation sleeve identifies it as compatible with the 22-to-16 AWG wire range, making color-coded organization straightforward on panelboards, control cabinets, and junction boxes. The copper contact features a TiN (titanium nitride) plating that resists corrosion and maintains a low-resistance connection over time. At 0.803 inches in overall length and 0.26 inches in ring width, this terminal fits standard number 8 stud hardware. Electricians and panel technicians use this terminal where a secure, inspectable ring-lug connection is required on light-gauge wire circuits.

This terminal is suited for residential and commercial electrical work, panel wiring, control panel assembly, and equipment termination where a number 8 stud is used. The partially insulated design allows the ring barrel to seat flush against the lug while keeping the wire entry protected. It is commonly installed in low-voltage control wiring, HVAC equipment control boards, relay panels, and terminal strip assemblies. Each package contains 75 terminals, making it practical for production wiring and service work requiring consistent, repeatable crimped connections.

Key Features

• Partially insulated red vinyl sleeve for 22 to 16 AWG wire identification and wire-entry protection
• Copper contact with TiN plating for corrosion resistance and stable conductivity
• Number 8 stud size fits standard machine screws and terminal posts
• Crimp connection type for fast, tool-based termination without soldering
• RoHS compliant construction
• Package quantity of 75 terminals per pack

Compatibility

Designed for use with 22 to 16 AWG wire on number 8 stud hardware. Suitable as an OEM-style ring terminal for control wiring, panel assembly, and equipment termination applications requiring a partially insulated crimp lug in this wire and stud size range.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements for wire terminations. De-energize the circuit completely before terminating or inspecting any ring lug connection. Use a ratchet-style or calibrated crimp tool rated for the 22-to-16 AWG wire range to ensure a full, gas-tight crimp on the copper barrel. Inspect each crimped terminal visually before torquing to the stud to confirm the wire is fully seated and the insulation sleeve is undamaged.
