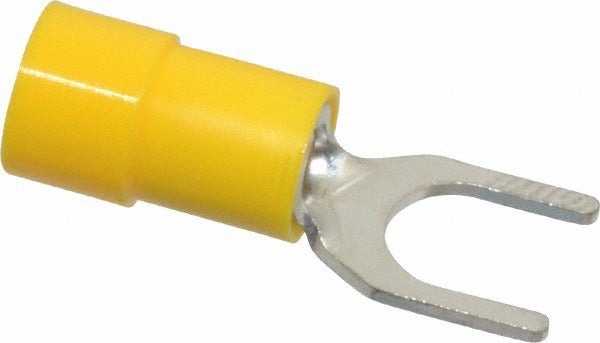

Thomas Betts TV10-14F-XV Fork Terminal 1/4 Inch Stud

Product Description

The THOMAS BETTS TV10-14F-XV is a standard fork terminal designed for crimp-style wire terminations in electrical wiring applications. It features partial vinyl insulation in yellow, making it easy to identify during installation and inspection. Rated at 600 volts, this terminal accepts a 1/4 inch stud and is constructed with a copper contact plated with TiN (titanium nitride) for reliable conductivity and corrosion resistance. The vinyl insulation material meets UL 94 V-0 flammability standards. Licensed electricians and panel wiring technicians install this type of terminal using a calibrated crimp tool to achieve a secure, code-compliant connection.

This fork terminal is suited for residential, commercial, and light industrial electrical work where a screw or stud termination point is required. Common applications include control panels, terminal blocks, and equipment wiring where a removable but secure fork-style connection is preferred over a ring terminal. The yellow color coding indicates compatibility with the applicable wire gauge range for this terminal series. It ships in a package quantity of 75, making it practical for service vehicles, panel shops, and maintenance stock.

Key Features

• Crimp connection type for a fast, reliable, tool-terminated installation
• Partial vinyl insulation rated to UL 94 V-0 flammability standard
• 600-volt rating suitable for standard control and power wiring
• 1/4 inch stud size fits common terminal blocks and equipment lugs
• Copper contact with TiN plating for conductivity and corrosion resistance
• RoHS compliant construction

Compatibility

Designed as an OEM-style crimp fork terminal for use with standard 1/4 inch stud termination points in electrical control and wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any wires. Use a calibrated ratchet crimp tool appropriate for the terminal and wire gauge to ensure a proper mechanical and electrical connection. Do not attempt to solder over a crimped connection or re-crimp a previously installed terminal.
