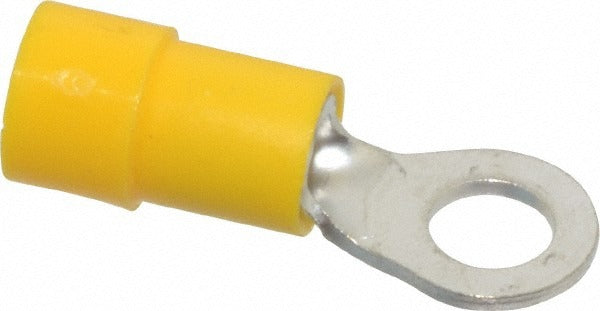

Thomas Betts TV10-10R-XV Ring Terminal 10-12 Awg Crimp 75pk

Product Description

The THOMAS BETTS TV10-10R-XV is a partially insulated circular ring terminal designed for secure crimp connections on 12 to 10 AWG copper wire. The terminal body is copper with a tin (TiN) contact plating for corrosion resistance and reliable conductivity. A yellow vinyl insulation sleeve provides partial coverage and quick visual identification of the compatible wire gauge range. At 1.047 inches in overall length and 0.374 inches in ring width, this terminal fits a No. 10 stud. Electricians and panel technicians install these terminals when terminating control wiring, equipment grounding conductors, or branch circuit leads to buss bars, lugs, and terminal blocks.

This ring terminal is suited for residential and commercial electrical applications where a mechanically sound, inspectable crimp connection is required at a No. 10 threaded stud. Typical install scenarios include motor control panels, HVAC equipment wiring harnesses, junction boxes, and general electrical distribution assemblies. The partially insulated design allows visual inspection of the conductor entry point after crimping. Each package contains 75 terminals, making this SKU appropriate for production wiring environments and service van stock.

Key Features

• Partially insulated with yellow vinyl sleeve for 12 to 10 AWG wire identification
• Copper contact with TiN (tin) plating for oxidation resistance and low contact resistance
• Crimp connection type for fast, repeatable mechanical termination
• Fits No. 10 stud size
• RoHS compliant construction
• Package quantity of 75 units per pack

Compatibility

Designed for use with 12 to 10 AWG copper conductors terminated at No. 10 threaded studs in standard electrical and control panel applications.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements. De-energize the circuit fully before terminating any conductor. Use a calibrated ratcheting crimp tool rated for the terminal barrel size to ensure a proper mechanical crimp — do not use pliers or uncalibrated tools as the connection may fail under load. Inspect the completed crimp for full conductor insertion and verify the ring seats flush against the stud before torquing the fastener.
