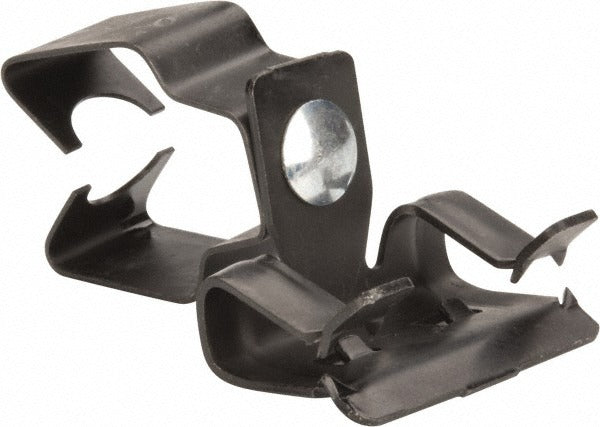

Thomas Betts SSF-CS3/4-F1/4 Conduit Clip 3/4 in Emt Rigid

Product Description

The THOMAS BETTS SSF-CS3/4-F1/4 is a flange-mounted snap-in conduit clip designed for securing 3/4 inch EMT and 3/4 inch rigid conduit to structural flanges and framing members. Formed from spring steel with an anodized finish, this clip delivers consistent holding force without fasteners or additional hardware once snapped into place. The snap-in design allows for quick, tool-free conduit seating, making it a practical choice for production wiring runs where installation speed matters. Electricians use this clip in both new construction and retrofit applications where conduit must be routed along steel framing, purlins, or beam flanges. The anodized finish provides a base level of corrosion resistance suitable for typical interior installations.

This clip is suited for commercial and industrial electrical installations involving 3/4 inch EMT or 3/4 inch rigid conduit systems. It mounts directly to flanged structural members, eliminating the need for drilling or additional mounting hardware at each support point. Typical applications include wiring runs along steel stud framing, steel joists, and beam flanges in commercial buildings, light industrial facilities, and mechanical rooms. The part is sold individually, making it straightforward to order exact quantities for a given job. This product is also referenced under Raco part number BP-12-E-2-4 and Gedney part number 12P24SM for cross-referencing during procurement.

Key Features

• Snap-in installation onto flanged structural members requires no additional fasteners
• Compatible with both 3/4 inch EMT and 3/4 inch rigid conduit in a single clip
• Spring steel construction maintains consistent clamping force over service life
• Anodized finish for corrosion resistance in standard interior environments
• Compact and lightweight at 0.0723 pounds per unit
• Cross-referenced as Raco BP-12-E-2-4 and Gedney 12P24SM

Compatibility

Designed for use with 3/4 inch EMT and 3/4 inch rigid conduit on flange-mounted applications. Cross-referenced with Raco part number BP-12-E-2-4 and Gedney part number 12P24SM.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for conduit support spacing and securing methods. Before servicing or repositioning clips on an existing energized conduit system, confirm the circuit is de-energized and locked out per site LOTO procedures. The clip snaps onto the flange of a structural member and accepts the conduit by pressing it into the clip opening — no drilling or threading is required at the mounting point. Verify that the structural member flange thickness is within the clip's designed grip range before installation.
