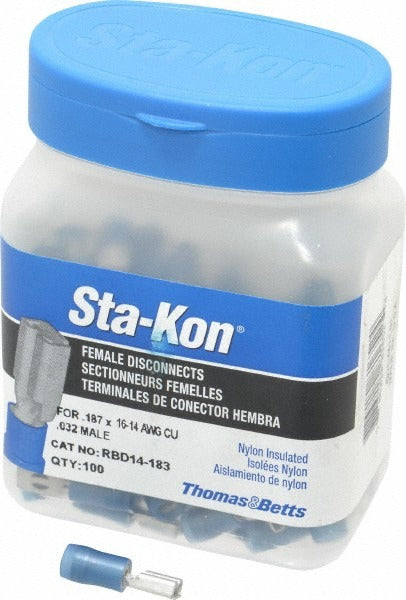

Thomas Betts RBD14-183 Female Wire Disconnect 16-14 Awg

Product Description

The THOMAS BETTS RBD14-183 is a fully insulated female wire disconnect terminal designed for quick-connect and quick-disconnect wiring applications in electrical panels, control boards, and equipment wiring harnesses. The terminal accepts 16-14 AWG wire and features a 0.187 inch tab width for use with standard 3/16 inch male tab connectors. The nylon insulation is blue for easy wire-gauge identification and meets UL 94 V-2 flammability rating. This type of terminal is installed by electricians, HVAC technicians, and panel wiring professionals wherever a reliable, removable wire-to-terminal connection is required.

The RBD14-183 is suited for residential and light commercial wiring scenarios including HVAC control wiring, appliance wiring, and electrical panel connections. The fully insulated nylon sleeve provides insulation coverage over the crimp barrel, reducing the risk of accidental contact in tight wiring compartments. The 0.187 inch tab size is a widely used standard dimension found on relays, contactors, switches, and terminal blocks across HVAC, appliance, and industrial electrical applications. These terminals are sold in quantities of 100 per package.

Key Features

• Fully insulated nylon sleeve in blue for 16-14 AWG wire identification
• 0.187 inch (3/16 inch) tab width fits standard quick-disconnect male tabs
• Female disconnect configuration for tool-free field disconnection
• UL Listed under UL File E66716 and rated UL 94 V-2 for flammability
• CSA Certified and RoHS Compliant
• Sold in 100-piece packages with a minimum order quantity of 1

Compatibility

Designed for use with standard 0.187 inch (3/16 inch) male quick-disconnect tabs on relays, contactors, switches, and terminal blocks where 16-14 AWG wire termination is required.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians following applicable NEC requirements. De-energize the circuit completely before crimping or disconnecting terminals. Use a proper ratcheting or calibrated crimp tool sized for 16-14 AWG insulated terminals to achieve a secure, gas-tight crimp. Do not solder over a crimped connection or use pliers as a substitute for a dedicated crimp tool.
