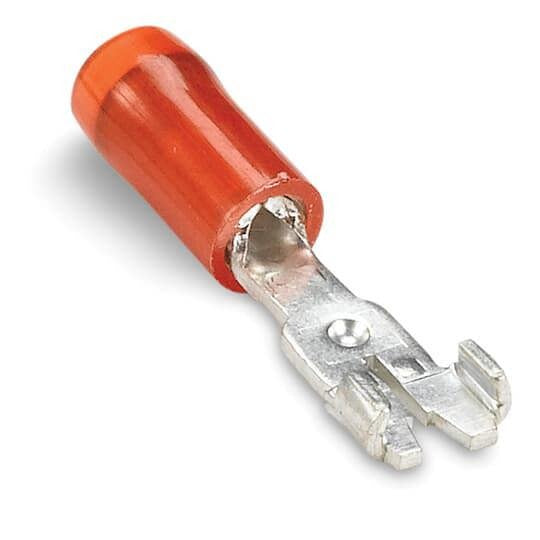

Thomas & Betts RA23 Nylon Insulated Wristlock Disconnect 1,000 Pack

Product Description

The Thomas & Betts RA23 is a nylon-insulated wristlock disconnect terminal constructed of tin-plated copper for use with #22-#18 AWG conductors. The terminal measures 1.70 inches overall with a single piece length of 0.99 inches and accepts up to 0.136 inches of insulation. The RA23 is RoHS compliant and is commonly supplied in bulk packs for electrical assembly and panel wiring applications.

• Wire range: #22-#18 AWG; nylon insulation for identification and strain relief
• Construction: high-conductivity electrolytic copper with electro-tin plating
• Dimensions: overall length 1.70 in; single piece length 0.99 in; maximum insulation 0.136 in; pack quantity 1,000

Product Highlights

Nylon-insulated tin-plated copper wristlock disconnect for #22-#18 AWG, 1.70 in length, 1,000 pack, RoHS compliant

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: RA23
• Country of Origin: US
