Thomas & Betts RA18-47PT Nylon Insulated Pin Terminal #22-#18 AWG

Product Description

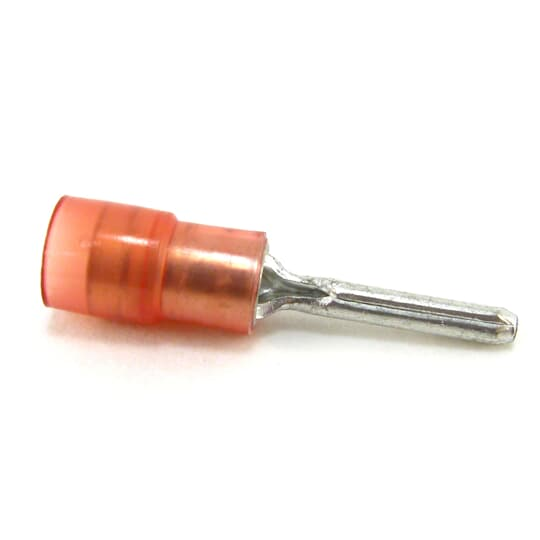

The THOMAS & BETTS RA18-47PT is a nylon-insulated pin terminal designed for wire termination. It has a length of .85 inches, a pin length of .39 inches, and a diameter of .075 inches. This pin terminal is suitable for wire sizes ranging from #22 to #18 AWG and helps prevent shorting and wire pullout. Recommended tool ERG4001.

• Nylon Insulated
• Pin Terminal
• Designed to prevent shorting, wire strand loss, and/or wire pullout

Product Highlights

Nylon-insulated pin terminal for secure wire termination in European/metric-style terminal blocks, preventing shorting and wire pullout.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: RA18-47PT
• Country of Origin: JP

Technical Specifications

• Brand: THOMAS & BETTS
• MPN: RA18-47PT
• Wire Range: NO.22-18 AWG
• Material: Copper; Tin Plated
• Length: 0.85 Inch
• Pin Length: 0.39 Inch
• Diameter: 0.075 Inch
• Voltage Rating: 300 V
• Standard: UL E9809
• RoHS: Yes
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Pin shape
• Insulation: PA
• Colour insulation: Red
• Reel packaging: N
• AWG-range: 22-18
• Surface protection: Tinned
• Type: Pin Terminal
• Gender: Pin
• Wire Size: 18-22 AWG
• Color: Red
• Operating Temperature: 105(Max) °C
