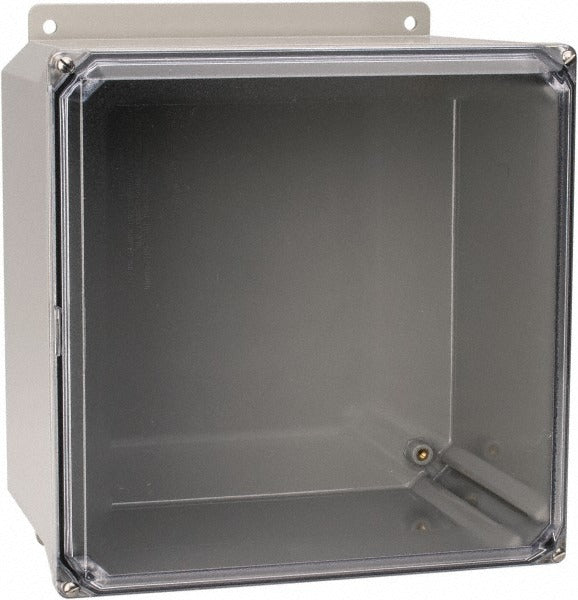

Thomas Betts NV10106 Polycarbonate Enclosure 10x10x6 Nema 4X

Product Description

The THOMAS BETTS NV10106 is a standard polycarbonate electrical enclosure rated for NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X environments. Measuring 10 inches wide by 10 inches high by 6 inches deep, it provides a durable, impact-resistant housing for electrical components in both indoor and outdoor applications. The clear polycarbonate construction allows visual inspection of interior components without opening the enclosure. A screw flat cover with captive cover screws keeps the closure secure, and integrated hinges and swing panels support easy access during maintenance. cULus Listed (E88685) and UL Listed 50 certifications confirm it meets recognized safety standards. The enclosure weighs 6 pounds and is installed by licensed electricians.

This enclosure suits a broad range of residential and commercial electrical installations where environmental protection is required. The multi-rated NEMA designation makes it appropriate for general-purpose indoor use, drip-tight, dust-tight, raintight, and corrosion-resistant outdoor applications. Typical use cases include housing control boards, terminal blocks, junction wiring, and small instrumentation panels in industrial, commercial, and utility settings. The clear cover is particularly useful in service environments where technicians need to read indicator lights or check wiring status without breaking the seal on every inspection visit.

Key Features

• Impact-resistant polycarbonate construction withstands physical abuse and harsh environments
• Clear cover allows visual inspection of internal components without opening the enclosure
• Multi-NEMA rating (1, 2, 3, 3S, 3SX, 3X, 4, 4X) covers a wide range of indoor and outdoor applications
• Screw flat cover with captive cover screws prevents loss of hardware during service
• Includes hinges and swing panels for convenient, unobstructed access to interior
• cULus Listed E88685 and UL Listed 50 certified for recognized safety compliance

Compatibility

Designed as an OEM-style standard electrical enclosure for use in residential, commercial, and light industrial electrical installations requiring NEMA-rated environmental protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits before mounting or wiring inside the enclosure. Verify that the selected mounting surface and hardware are appropriate for the enclosure weight and the environment. Maintain the NEMA rating integrity by using only properly rated conduit fittings and knockouts when making penetrations.
