Thomas Betts NS10106 Polycarbonate Enclosure Nema 4X

Product Description

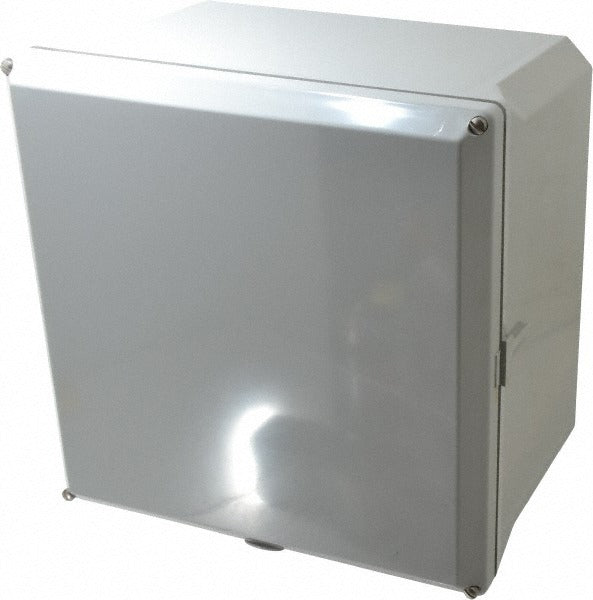

The THOMAS BETTS NS10106 is a standard polycarbonate electrical enclosure rated for NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X environments. Measuring 10 inches wide by 10 inches high by 6 inches deep, it provides a corrosion-resistant, impact-resistant housing for electrical components in demanding indoor and outdoor installations. The enclosure ships with captive cover screws, hinges, and swing panels included. It carries cULus Listed E88685 and UL Listed 50 certifications, making it suitable for use where listed equipment is required by code. Electricians and controls technicians are the primary installers for this type of enclosure.

This enclosure fits residential and light commercial applications where moisture, dust, or corrosive atmospheres are concerns. The polycarbonate construction makes it well suited for washdown areas, outdoor disconnect panels, control stations, and instrumentation mounting. The screw flat cover with captive fasteners allows repeated access without losing hardware. NEMA 4X rating covers protection against windblown dust, rain, splashing water, and corrosion, expanding its usable range across industrial and outdoor service scenarios.

Key Features

• Polycarbonate construction provides impact resistance and corrosion resistance without painting or coating
• NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X rated for broad environmental coverage
• Screw flat cover with captive cover screws prevents fastener loss during service
• Includes hinges and swing panels for flexible internal component mounting
• cULus Listed E88685 and UL Listed 50 certified
• Compact 10 x 10 x 6 inch footprint suits tight installation spaces

Compatibility

Designed as an OEM-style standard electrical enclosure suitable for use in electrical, instrumentation, and control panel applications requiring NEMA 4X or lower environmental protection ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. Disconnect and lock out all power sources before opening or modifying any enclosure. Verify that all conduit entries and knockouts are properly sealed to maintain the rated NEMA protection level after installation. Do not exceed the enclosure's dimensional or load capacity when mounting components internally.
