Thomas Betts NC864 Polycarbonate Enclosure 6x8x4 Nema 4X

Product Description

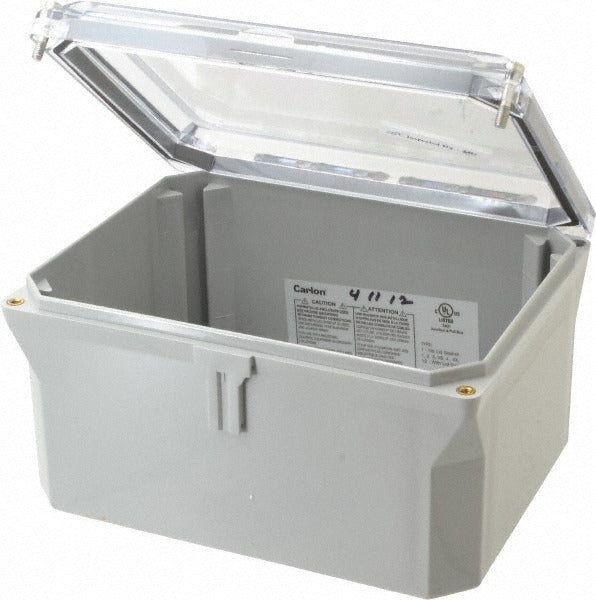

The THOMAS BETTS NC864 is a standard polycarbonate electrical enclosure designed to house and protect electrical components in commercial and industrial environments. Measuring 6 inches wide, 8 inches high, and 4 inches deep, this enclosure features a clear, hinged flat cover with captive cover screws and integrated swing panels for easy access during installation and maintenance. The polycarbonate construction delivers impact resistance along with multi-environment durability, meeting NEMA ratings 1, 2, 3, 3S, 3SX, 3X, 4, 4X, and 12. It is installed by licensed electricians and control systems technicians working on control panel builds, junction applications, and field instrument enclosures.

The NC864 suits a wide range of residential, commercial, and light industrial electrical applications where a compact, weather-resistant, and corrosion-resistant enclosure is required. Its NEMA 4X rating makes it suitable for indoor and outdoor use in locations exposed to windblown dust, rain, splashing water, and hose-directed water. The clear polycarbonate cover allows visual inspection of internal components without opening the enclosure, which is useful in control and monitoring installations.

Key Features

• Clear polycarbonate cover allows visual inspection of interior without removing the cover
• Hinged flat cover with captive screws for secure, tool-assisted access
• Integrated swing panels included for flexible internal component mounting
• Impact-resistant polycarbonate construction withstands physical and environmental stress
• Multi-rating compliance: NEMA 1, 2, 3, 3S, 3SX, 3X, 4, 4X, and 12 in a single enclosure
• cULus Listed (E88685) and UL Listed 50 for verified safety compliance

Compatibility

Designed as an OEM-style standard enclosure for use in residential, commercial, and industrial electrical control and junction applications requiring NEMA 4X polycarbonate housing.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits before opening or mounting the enclosure. Ensure mounting surface and hardware are appropriate for the enclosure weight and the environmental rating required at the install location. Do not drill or modify the enclosure in a way that compromises its NEMA rating or structural integrity.
