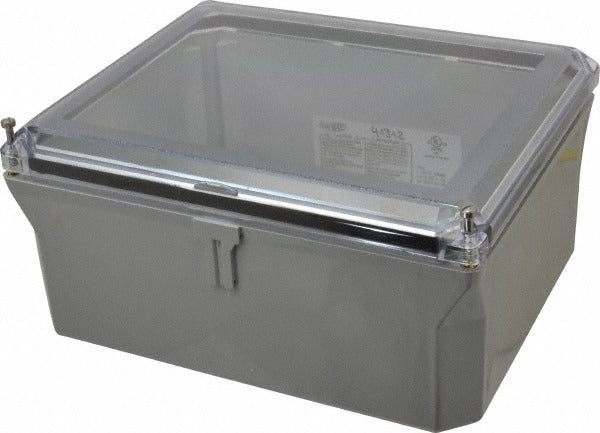

Thomas Betts NC1084 Polycarbonate Enclosure 8x10x4 Nema 4X

Product Description

The THOMAS BETTS NC1084 is a standard polycarbonate electrical enclosure rated for NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X environments. It measures 8 inches wide, 10 inches high, and 4 inches deep, providing a compact housing for electrical controls, terminal blocks, and similar components. The clear polycarbonate construction allows visual inspection of interior components without opening the enclosure. A hinged flat cover with captive screws and swing panels simplifies access during installation and maintenance. Electricians and controls technicians working in light industrial, commercial, and outdoor applications install this enclosure where multi-rating NEMA protection and impact resistance are required.

The NC1084 is suited for residential, commercial, and light industrial installations where the enclosure may be exposed to dust, water, and corrosive conditions. The NEMA 4X rating makes it appropriate for wet or washdown locations, while the polycarbonate material offers corrosion resistance without the weight of stainless steel. Typical applications include housing PLCs, relay panels, junction wiring, and instrumentation in manufacturing, HVAC mechanical rooms, and outdoor electrical service points.

Key Features

• Clear polycarbonate body allows visual inspection of interior components without opening the cover
• NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X multi-rating for broad environment coverage including wet and outdoor locations
• Hinged flat cover with captive cover screws for secure, tool-accessible closure
• Includes hinges and swing panels for flexible interior mounting and access
• Impact-resistant polycarbonate construction resists physical damage in demanding environments
• cULus Listed (E88685) and UL Listed 50 certified

Compatibility

Designed as an OEM-style standard electrical enclosure suitable for general-purpose and weatherproof electrical installations requiring NEMA 4X-rated polycarbonate housing.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for enclosure selection and wiring methods. Disconnect and de-energize all circuits before opening or mounting the enclosure. Verify that conduit entry knockouts or field-drilled holes are properly sealed with rated fittings to maintain the NEMA rating after installation. Do not exceed the enclosure depth or wire fill in a manner that prevents proper cover seating and latching.
