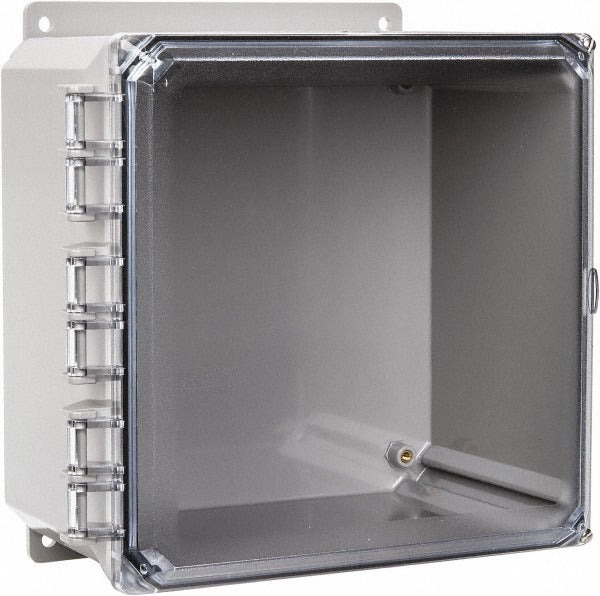

Thomas Betts NC10106 Polycarbonate Enclosure 10x10x6 Nema 4X

Product Description

The THOMAS BETTS NC10106 is a standard polycarbonate electrical enclosure rated for NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X environments. Measuring 10 inches wide by 10 inches high by 6 inches deep, it provides a clear, impact-resistant housing for electrical components, controls, and instrumentation. The clear polycarbonate construction allows visual inspection of interior components without opening the cover. A flat hinged cover with captive screws and swing panels simplifies access during service. This enclosure weighs 5.3 pounds and is suitable for licensed electricians installing control panels, junction boxes, and similar assemblies in both indoor and outdoor locations.

This enclosure is designed for residential, commercial, and light industrial electrical installations where environmental protection is required. The NEMA 4X rating makes it appropriate for outdoor or wet-location applications, including wash-down areas and corrosive environments. Electricians and control panel builders use this enclosure to house terminal blocks, PLCs, relays, and other low-voltage or line-voltage components. Its polycarbonate material resists impact and does not corrode, making it a practical choice for applications where a steel enclosure would be susceptible to rust or chemical exposure.

Key Features

• Clear polycarbonate construction allows visual inspection without removing the cover
• NEMA 1, 2, 3, 3S, 3SX, 3X, 4, and 4X multi-rating for broad environmental coverage
• Impact-resistant material suitable for demanding indoor and outdoor installations
• Flat hinged cover with captive screws for secure, tool-accessible closure
• Includes captive cover screws, hinges, and swing panels as standard hardware
• cULus Listed (E88685) and UL Listed 50 certified

Compatibility

Designed as an OEM-style standard enclosure for electrical control, instrumentation, and junction box applications requiring NEMA 4X-rated polycarbonate housing.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power sources before opening or wiring inside the enclosure. Ensure all conduit knockouts and entry points are properly sealed to maintain the NEMA rating after installation. Do not exceed the enclosure interior dimensions when sizing component layouts, and verify that the mounting surface can support the enclosure weight with a full component load.
