THOMAS & BETTS MSC500 Insulator Splice

Product Description

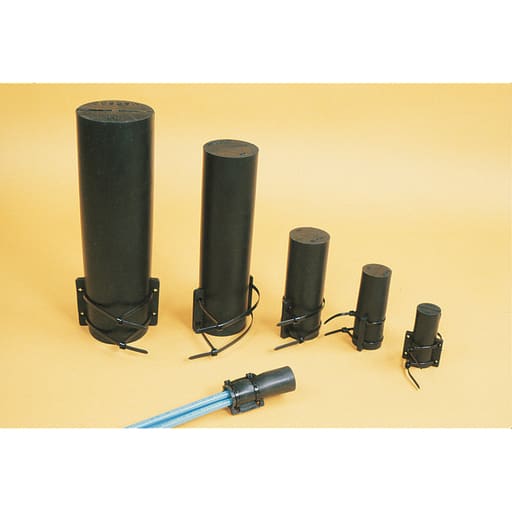

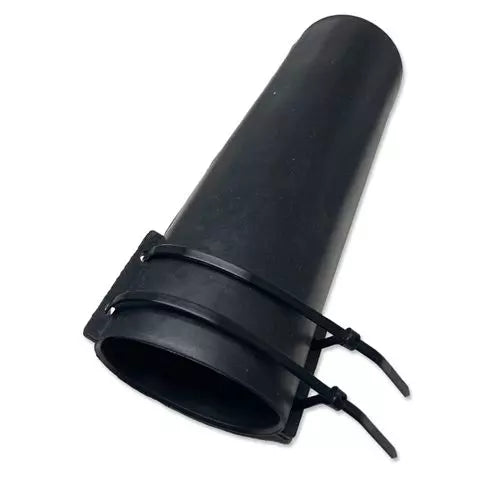

The THOMAS & BETTS MSC500 is an insulator splice designed for motor stub splices. Made from neoprene elastomer, it features nylon straps, providing durability and flexibility. This re-enterable insulator is suitable for conductor sizes ranging from three hundred fifty AWG to five hundred kcmil. The splice is rated for a maximum voltage of six hundred volts and meets UL E9809 safety standards.

• Insulates motor stub splices
• Fits conductor sizes from three hundred fifty AWG to five hundred kcmil
• Manufactured with neoprene elastomer and nylon straps

Product Highlights

The THOMAS & BETTS MSC500 offers reliable insulation for motor connections, ensuring safety and efficiency in electrical applications.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• MPN: MSC500

Technical Specifications

• Type: Splice Insulators and Insulating Covers
• Conductor Size: 350-500 kcmil
• Material: Neoprene
• Voltage: 600 Volt
• Standard: UL E9809
• Family Brand Name: ABB
• Sub Brand: Shrink-Kon
• UPC: 786210817743
