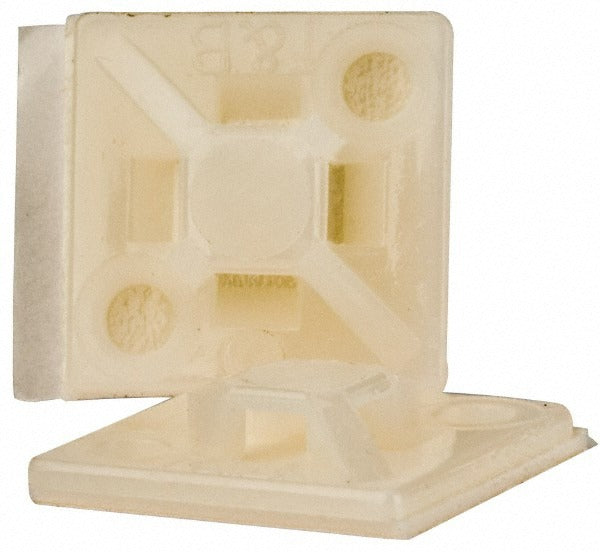

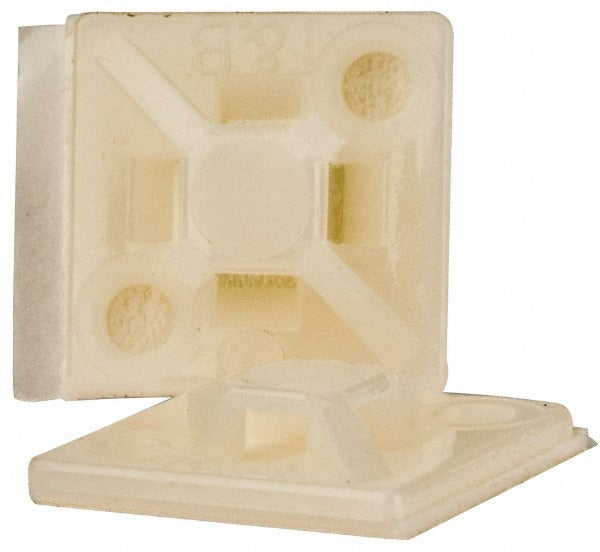

Thomas Betts MPNY-750-9-C Cable Tie Mounting Base 100pk

Product Description

The THOMAS BETTS MPNY-750-9-C is a four-way cable tie mounting base designed to organize and route cable bundles in electrical, data, and control wiring applications. Made from natural-colored nylon, this mounting base accepts cable ties up to 0.14 inches wide and provides a stable anchor point on flat surfaces. It measures 0.75 inches long by 0.75 inches wide by 0.205 inches high. The adhesive-backed base allows tool-free placement on clean, smooth surfaces, while a screw size 6 hole is included for permanent mechanical fastening when adhesive alone is insufficient. Electricians and panel technicians commonly install these in enclosures, raceways, and equipment cabinets.

This mounting base is suited for residential, commercial, and light industrial electrical and low-voltage wiring work. It performs well in environments where organized cable routing is required without drilling or tapping. The four-way clip design accepts standard cable ties inserted from any of four directions, giving installers flexibility in routing orientation. The nylon construction handles a wide operating temperature range, making it appropriate for indoor equipment panels, junction boxes, HVAC control wiring, and similar installations. This listing includes a package of 100 bases.

Key Features

• Four-way clip design accepts cable ties from any direction for flexible routing
• Dual mounting method: adhesive back for fast placement plus screw size 6 hole for permanent fastening
• Accepts cable ties up to 0.14 inches wide
• Nylon construction rated from -40 degrees F to 185 degrees F operating temperature
• Compact footprint: 0.75 inches long x 0.75 inches wide x 0.205 inches high
• Sold in a package of 100 bases

Compatibility

Designed as an OEM-style replacement and standard accessory for use with cable ties up to 0.14 inches wide in residential, commercial, and industrial wiring installations requiring surface-mount cable management.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage technicians. Before mounting in any live enclosure or panel, de-energize the circuit and follow lockout/tagout procedures per applicable NEC requirements. For adhesive mounting, ensure the surface is clean, dry, and free of oils before pressing the base firmly into place. When long-term mechanical security is required, fasten with a size 6 screw through the integrated mounting hole rather than relying on adhesive alone.
