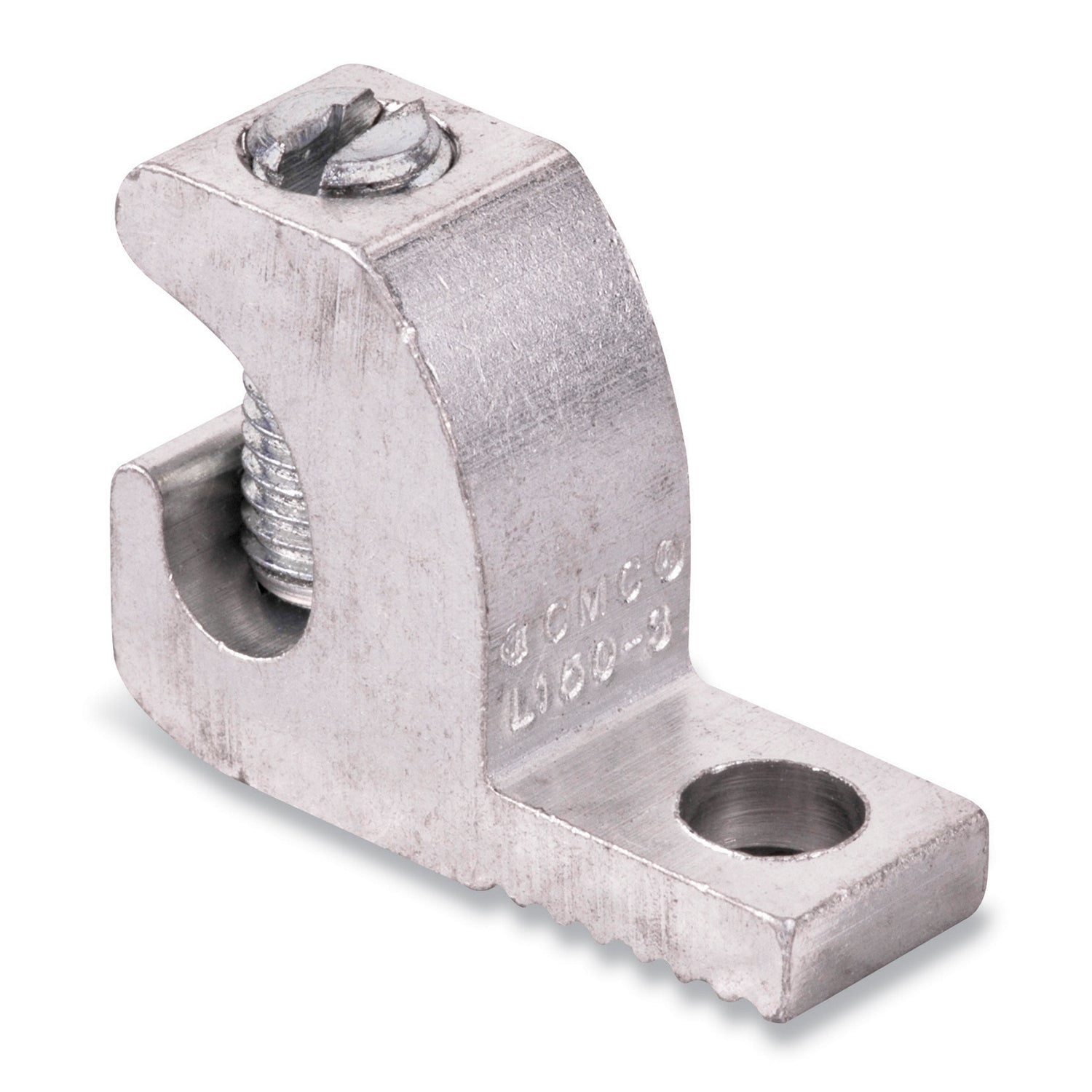

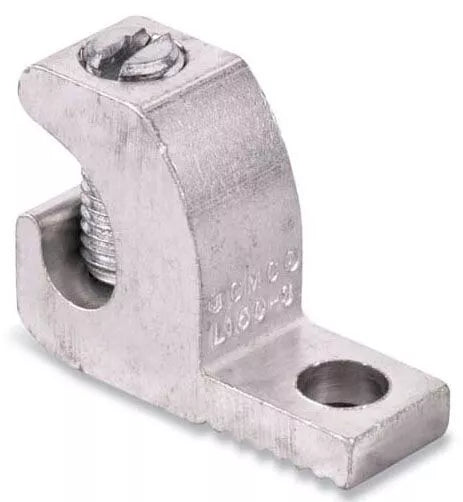

THOMAS & BETTS LL306 Lay-In Lug Connector

Product Description

The THOMAS & BETTS LL306 Lay-In Lug Connector is designed for connecting both aluminum and copper conductors. This connector is made from aluminum alloy and is suitable for conductor sizes that range from six AWG to three-aught AWG. The connector features a 0.33-inch stud size, making it easy to use in various applications.

• Constructed from aluminum alloy.
• Supports conductor sizes from six AWG to three-aught AWG.
• Includes a 0.33-inch stud for easy installation.

Product Highlights

This lay-in lug connector enables the grounding conductor to be easily laid in as a jumper to multiple conduits, providing flexibility in installations.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• MPN: LL306

Technical Specifications

• Material: Aluminum
• Minimum Conductor Size: 6 AWG
• Maximum Conductor Size: 3/0 AWG
• Stud Size: 0.33 inches
• Dimensions: 2 inches L x 0.8 inches W x 1.56 inches H
• Insulation Type: Non-Insulated
• Connector Type: Lay-In Lug
• Conductor Material: Aluminum and Copper
• Standard: UL E9809
• Approval: UL, CSA
