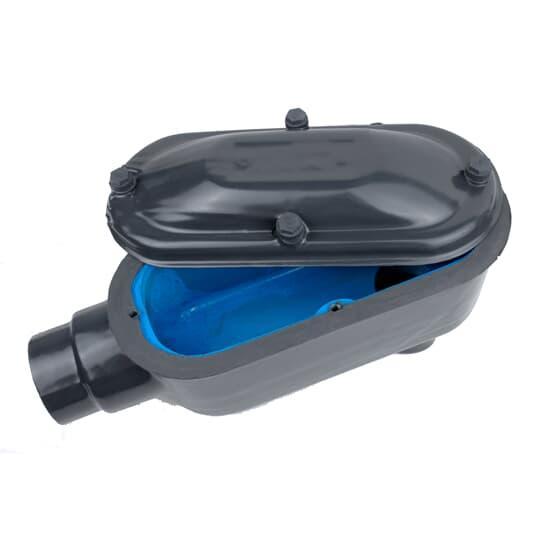

Thomas & Betts LB28-4X-G OCAL PVC-Coated Conduit Body Type LB Form-8 3/4-Inch

Product Description

The Thomas & Betts LB28-4X-G OCAL PVC-Coated Conduit Body is a Type LB, Form-8, 3/4-Inch conduit body. It provides access to conductors for maintenance and system changes. The conduit body and cover are coated inside and out with .002 in. blue urethane, then exterior coated with a minimum of .040 in. PVC.

• UL Listed Type 4X and NEMA 4X rating for protection in harsh environments.
• Double coated for superior corrosion protection.
• Includes mated cast iron cover with O-ring seal and stainless steel encapsulated screws.

Product Highlights

This PVC coated conduit body is ideal for providing access to conductors in environments exposed to moisture, rain, ice, or snow.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: LB28-4X-G
• Country of Origin: US - United States

Technical Specifications

• Color: GREY
• UNSPSC Code: 39121311
• ECCN: EAR99
• UNSPSC: 39131708
• Trade Size: 3/4 in.
• Color Family: Gray
• Enclosure: NEMA 4X
• Hub Size: 3/4 in
• Material: Iron
• Finish: PVC Coated
• Type: Form 8 UL-4X Conduit Body
• Brand: ABB
• Sub Brand: Ocal®
• Product UPC: 70450802439
• Height: 2.44 Inch
• Length: 5.56 Inch
• Width: 1.56 in
• Application: Provide for access to conductors for maintenance and future system changes
• Certifications: UL, CSA
• Capacity: 8 cu-in
• Connection type: Thread
• Country of origin: US
• Manufacturer Name: ABB
