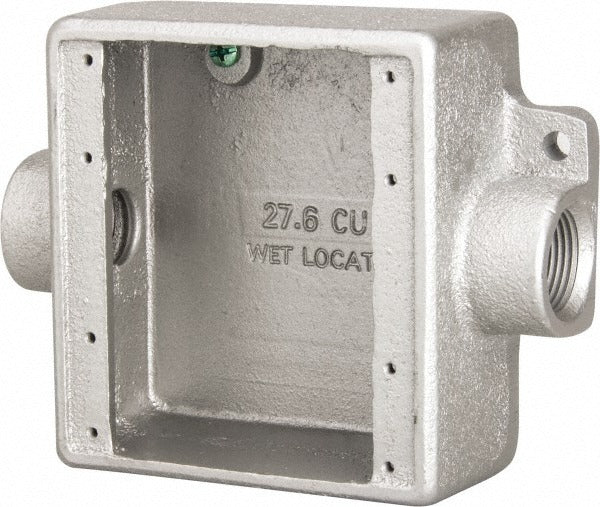

Thomas Betts FSC222-TB 2 Gang Device Box Iron

Product Description

The THOMAS BETTS FSC222-TB is a 2-gang rectangular electrical device box constructed from iron with a zinc-plated finish. Designed for residential and commercial wiring applications, it provides a sturdy, code-compliant enclosure for duplex receptacles, switches, and similar wiring devices. The box measures 4.63 inches in overall height, 5.38 inches in overall width, and 2 inches in overall depth. Two 3/4-inch knockouts allow flexible conduit or cable entry. Internal ground screws are included, simplifying grounding during installation. Licensed electricians and electrical contractors install this box in standard rough-in and retrofit wiring work where a 2-gang device configuration is required.

This device box is suited for use in standard dry, indoor electrical installations where weather resistance is not required. Its rectangular iron construction makes it appropriate for new construction framing, remodel work, and retrofit applications. The 2-gang configuration accommodates side-by-side wiring devices within a single enclosure. The zinc-plated finish provides corrosion resistance in normal interior environments. Internal ground screws support proper equipment grounding in compliance with applicable electrical codes.

Key Features

• 2-gang rectangular configuration for side-by-side device mounting
• Iron body with zinc-plated finish for durability in interior installations
• Two 3/4-inch knockouts for conduit or cable entry flexibility
• Internal ground screws included for streamlined grounding
• Non-weather-resistant rating for standard dry indoor use
• UL Listed and CSA Certified to UL 514A and CSA C22.2 No. 18

Compatibility

Designed as an OEM-style replacement and standard new-installation device box for 2-gang electrical device configurations in residential and commercial interior wiring systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage before beginning work. Secure the box to framing or structural supports per code requirements before pulling wire. This box is rated for non-weather-resistant applications only and must not be used in wet or outdoor locations.
