Thomas & Betts F8006 Ins Twin Ferrule

Product Description

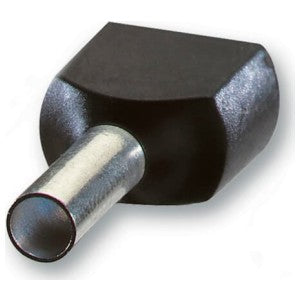

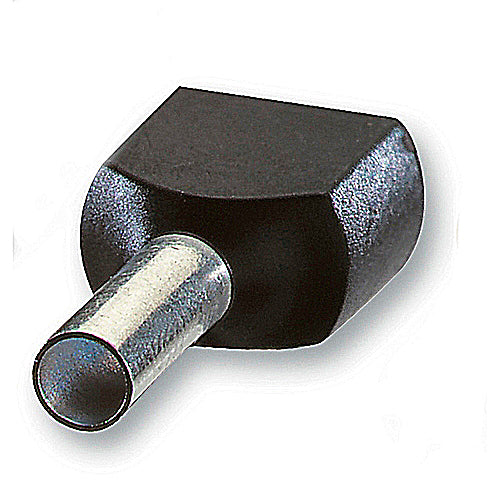

The THOMAS & BETTS F8006 is a polypropylene insulated twin ferrule with a length of 0.630 inches/16mm. It features a pin length of 0.315 inches/8mm, a pin diameter of 0.091 inches/2.3mm, and a base diameter of 0.252 inches/6.4mm. This ferrule supports a conductor range of 2x16 AWG/2x1.50mm2.

• Polypropylene Insulated
• Twin Ferrule
• Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks

Product Highlights

The THOMAS & BETTS F8006 twin ferrule ensures reliable electrical connections. It is suitable for use with T3 tool applications.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: F8006
• Country of Origin: Germany

Technical Specifications

• Length: 0.630 Inches/16mm
• Pin Length: 0.315 Inches/8mm
• Pin Diameter: 0.091 Inches/2.3mm
• Base Diameter: 0.252 Inches/6.4mm
• Conductor Range: 2x16 AWG/2x1.50mm2
• Brand: Sta-Kon
• Standard: UL E489056 / UL E489056
• Use With: T3 Tool Applications
• Color: Black
• Color Family: Black
