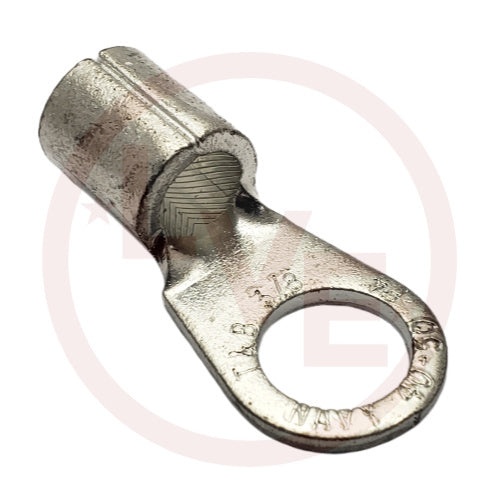

THOMAS & BETTS F4-38 Sta-Kon Ring Terminal

Product Description

The THOMAS & BETTS F4-38 Sta-Kon ring terminal is an essential component for reliable electrical connections. Designed for use with four AWG conductors, this non-insulated terminal ensures strong connections within your electrical systems.

• Constructed from copper for high conductivity and durability.
• Thoroughly finished with tin coating to resist corrosion.
• Features a braze seam for added strength and reliability.

Product Highlights

This terminal supports applications requiring up to six hundred VAC and operates efficiently in temperatures of up to one hundred fifty degrees Celsius.

Product Information

Standard Information

• Manufacturer: Thomas & Betts
• MPN: F4-38

Technical Specifications

• Terminal Type: Sta-Kon Non-Insulated
• Wire Gauge: 4 AWG
• Stud Size: 3/8 inches
• Insulation: Non-Insulated
• Packaging: Bulk
• Barrel Type: Brazed Seam/Serrated
• Temperature Rating: 150 degrees Celsius
• Tongue Size: 0.6 inches wide x 0.07 inches thick
• Voltage Rating: 600 VAC
• Color: Metallic
• Length: 1.35 inches
• Material: Copper
• Weight: 0.02 lbs
