Thomas & Betts EYS51-G Conduit 1-1/2 in

Product Description

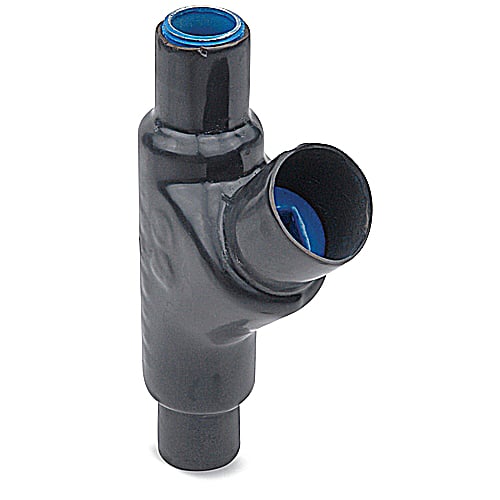

The THOMAS & BETTS EYS51-G is a conduit sealing fitting with a 1-1/2 inch size. It is constructed from iron and coated with PVC. This fitting is designed for use with conduits and is suitable for surface mounting. It prevents pre-compression or pressure piling in conduit systems.

• Female hub connection type
• Constructed from ductile iron
• Suitable for horizontal or vertical mounting

Product Highlights

Explosion-proof and dust-ignition proof conduit seal with a gray iron alloy body and PVC coating.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: EYS51-G

Technical Specifications

• Color: GREY
• Series: EYS
• Size: 1-1/2 in
• For Use With: Conduits
• Mounting: Surface Mounting
• Material: Iron
• Coating: PVC Coated
• Approval: UL, CSA
• Trade Size: 1 1/2 Inch
• Connection Type: Female, Female
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 Group E F G, Class III, Div 1 and 2
• Mounting Position: Horizontal/Vertical
• Type: Hub
• Turning Radius: 2 Inch
• Finish: 40 MIL PVC COATED (OUTSIDE) OVER 2 MIL BLUE URETHANE DOUBLE COAT
• Model: EYS
• Product Group: OCAL PVC SYSTEM
• Brand Name: Series EYS
• Manufacturer: Thomas & Betts
• Additional Info: Color Gray; Finish 40 Mil PVC Coated (Outside) Over 2 Mil Blue Urethane Double Coat
