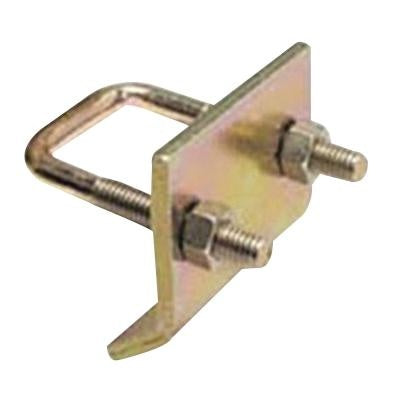

Thomas Betts E760-3 Steel Type U Channel To Beam Clamp 0.8-Inch Jaw Opening Galv-Krom

Product Description

The Thomas & Betts E760-3 is a steel type U channel to beam clamp designed for strength and durability. It features a jaw opening of 0.8 inches. This product is compatible with B 900, B 905, B 906, and B 907 series channels. The clamp is coated with Galv-Krom for rust resistance.

• Load capacity of 2200 lb
• Steel construction for reliability
• Dimensions of three inches by four and three-quarters inches by one-quarter inch

Product Highlights

This beam clamp is ideal for various applications in beam connections and electrical installations. The biting hardened points secure the clamp firmly to the beam flange.

Product Information

Standard Information

• Brand: Thomas Betts
• Country of Origin: United States of America

Technical Specifications

• MPN: E760-3
• Type: Type U
• Material: Steel
• Finish: Galv-Krom
• Load Capacity: 2200 lb
• Dimensions: 3 Inch Width x 4-3/4 Inch Height x 1/4 Inch Thickness
• UNSPSC: 31162905
• UPC: 78599177813
