Thomas Betts DIH5-1-LM Aluminum Outlet Box 1 Gang

Product Description

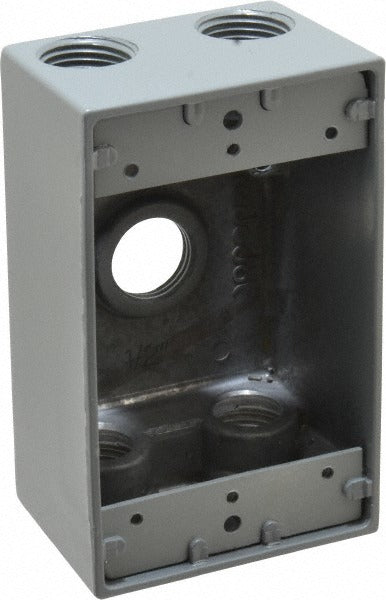

The THOMAS BETTS DIH5-1-LM is a single-gang aluminum outlet box designed for electrical wiring installations requiring a weather-resistant enclosure. Constructed from powder-coated aluminum in a rectangular profile, this box measures 4.5 inches in overall height, 2.5 inches in overall width, and 2 inches in overall depth. It is rated NEMA 3R, meaning it is built to withstand falling rain and ice formation without compromising the integrity of enclosed devices. Licensed electricians install this box in exposed or semi-exposed locations where a standard plastic box is not appropriate for the environment or code requirement.

This outlet box is suited for residential and light commercial electrical applications where weatherproof or weather-resistant wiring device enclosures are required. It supports horizontal and vertical mounting configurations, giving installers flexibility in how the box is oriented on the structure. The box ships with a gasket, mounting lugs, plugs, and screws included, reducing the need for separate hardware sourcing on the job. Five 1/2-inch knockouts allow for conduit entry from multiple directions to accommodate the run layout.

Key Features

• NEMA 3R weather-resistant rating suitable for outdoor or exposed locations
• Powder-coated aluminum body resists corrosion in damp environments
• Five 1/2-inch knockouts for flexible conduit entry routing
• Supports both horizontal and vertical mounting orientations
• Includes gasket, mounting lugs, plugs, and screws for a complete installation
• CSA Certified and UL Listed to meet code requirements on commercial and residential jobs

Compatibility

Designed as an OEM-style weatherproof outlet box for single-gang wiring device installations using standard 1/2-inch conduit fittings in NEMA 3R-rated applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the panel and verify zero voltage with a meter before beginning work. Seal conduit entries properly to maintain the NEMA 3R rating after installation. Do not exceed the box fill capacity as calculated per NEC Article 314.
