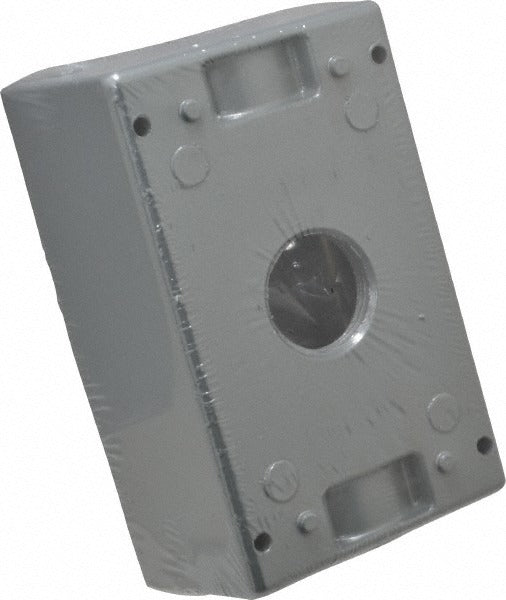

Thomas Betts DIH3-2-LM Outlet Box Aluminum 1 Gang

Product Description

The THOMAS BETTS DIH3-2-LM is a single-gang aluminum outlet box designed for electrical installations requiring weather-resistant enclosure performance. Rated NEMA 3R, this rectangular box protects against rain, sleet, and external ice formation, making it suitable for outdoor and exposed-location wiring applications. The body is aluminum with a powder-coated silver finish, measuring 4.5 inches in overall height, 2.5 inches in overall width, and 2 inches in overall depth. It includes three 0.75-inch knockouts, and ships complete with a gasket, mounting lugs, plugs, and screws. Licensed electricians and electrical contractors are the primary installers for this type of enclosure.

This outlet box is used in residential and light commercial electrical work where a durable, weather-resistant single-gang box is required. Typical applications include exterior wall outlets, service entry points, and outdoor receptacle installations. The NEMA 3R rating qualifies it for outdoor use in locations exposed to the elements. The included gasket provides a seal against moisture ingress, and the mounting lugs support both horizontal and vertical mounting orientations to accommodate varied field conditions.

Key Features

• NEMA 3R weather-resistant rating for outdoor and exposed-location use
• Aluminum body with powder-coated silver finish for corrosion resistance
• Includes gasket, mounting lugs, plugs, and screws for a complete installation
• Three 0.75-inch knockouts for flexible conduit entry configuration
• Supports horizontal and vertical mounting orientations
• CSA Certified and UL Listed (UL File E28688); meets Federal Specification W-C-586

Compatibility

Designed as an OEM-style single-gang outlet box for use in standard residential and light commercial outdoor electrical installations requiring NEMA 3R protection.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit and verify absence of voltage before beginning any work. Ensure knockout openings are sealed with appropriate conduit fittings or plugs to maintain the NEMA 3R weather rating. Mount securely to a structural surface using the provided mounting lugs to prevent movement or water infiltration at the box perimeter.
