Thomas & Betts BGA125-14-20 Grd Bsh Al Ins 1-1/4 Inch

Product Description

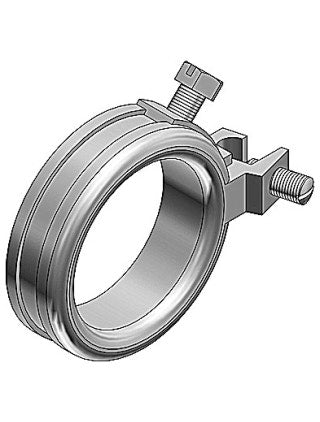

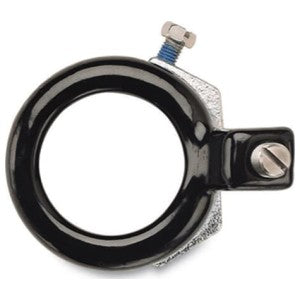

The THOMAS & BETTS BGA125-14-20 is a 1-1/4 Inch Blackjack grounding bushing made of aluminum and galvanized for use with threaded or threadless rigid/IMC conduit. It accommodates a wire range of 14 to 2/0 AWG. The grounding bushing provides superior ground continuity and a secure grip for a lasting bond.

• Provides superior ground continuity
• Secure grip forms lasting bond
• For use with threaded or threadless rigid/IMC conduit

Product Highlights

Aluminum grounding bushing with a wire range of 14 to 2/0 AWG, suitable for threaded or threadless rigid/IMC conduit applications.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: BGA125-14-20
• Country of Origin: US - United States

Technical Specifications

• Standard: CSA C22.2 No.18, CSA C22.2 No.41, CSA File: LR2884, UL 514B and UL467, UL E3060
• Application: Industrial
• Connection Type: Threaded
• Material: Aluminum
• Type: Grounding Bushing
• Lug Capacity: 14 to 2/0 AWG
• Temp. Rating: 150°C
• Throat Type: Insulated
• Trade Size: 1-1/4 Inch
• Wire Size: 14 to 2/0 AWG
• Lug Type: Stainless Steel Screw
• Conductor Material: Copper/Aluminum
• Approval: UL, CSA
• Used On: Threaded/Threadless Rigid Conduit/IMC
• Diameter: 2.22 Inch
• Height: 1.181 Inch
• Standard Package: 50
• Brand: Blackjack
