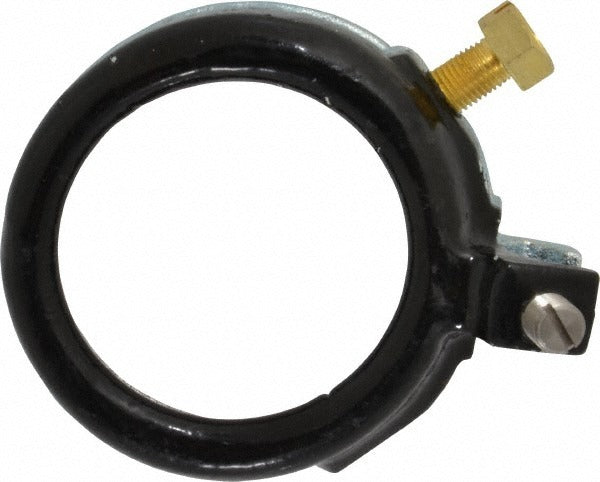

Thomas Betts BG250-14-20 Conduit Bushing 2-1/2 in Imc

Product Description

The THOMAS BETTS BG250-14-20 is a malleable iron conduit bushing designed for use with rigid and intermediate metal conduit (IMC) systems. It features partial insulation and a lug screw connection, making it a reliable choice for protecting conductors at conduit entry points into enclosures, panels, and junction boxes. The 2-1/2 inch trade size fits standard rigid and IMC conduit of that diameter. Electricians install this bushing at the end of a conduit run to prevent insulation damage to wires passing through the fitting. Malleable iron construction provides durability in demanding commercial and industrial environments.

This bushing is suited for commercial and industrial electrical installations where rigid conduit or IMC terminates at an enclosure or panel. It is commonly installed by licensed electricians during conduit rough-in or panel termination work. The partial insulation collar helps guard wire insulation against the sharp metal edge of the conduit end. The straight connector shape and lug screw connection allow secure, straightforward attachment without special tooling beyond standard hand tools.

Key Features

• Malleable iron construction for durability in commercial and industrial conduit systems
• Partial insulation collar protects conductor insulation at conduit terminations
• Lug screw connection type for secure, reliable attachment
• Straight connector shape simplifies installation at panel and enclosure entries
• 2-1/2 inch trade size fits standard rigid and IMC conduit

Compatibility

Designed as an OEM-style replacement fitting for 2-1/2 inch trade size rigid metal conduit (RMC) and intermediate metal conduit (IMC) termination applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the panel or enclosure completely before beginning conduit termination work. Thread the bushing onto the conduit end and tighten the lug screw securely before pulling conductors through to avoid insulation damage. Verify that the bushing is fully seated against the enclosure knockout before energizing the circuit.
