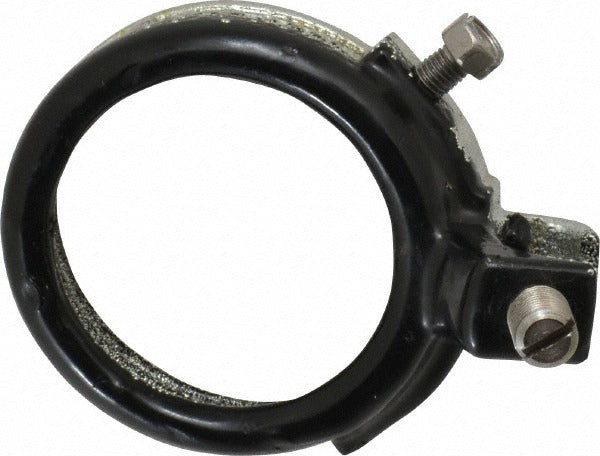

Thomas Betts BG200-14-20 Conduit Bushing 2 Inch Rigid Imc

Product Description

The THOMAS BETTS BG200-14-20 is a partially insulated conduit bushing designed for use with rigid metal conduit and intermediate metal conduit (IMC) systems. Made from malleable iron, it provides a durable, corrosion-resistant transition at conduit termination points, protecting conductor insulation from abrasion at the conduit end. The lug screw connection method allows secure, reliable attachment without special tooling. At a 2-inch trade size, this bushing is suited for medium and large conduit runs common in commercial and industrial electrical installations. Licensed electricians and electrical contractors install this fitting as part of code-compliant conduit terminations.

This bushing is used wherever 2-inch rigid metal conduit or IMC terminates into enclosures, panels, junction boxes, or other electrical equipment. The partially insulated design provides a protective inner lining at the throat of the bushing, reducing the risk of conductor insulation damage during wire pull-in. The straight connector shape makes it appropriate for standard, direct-entry terminations. It is commonly specified in commercial buildings, industrial facilities, and infrastructure projects where rigid or IMC conduit systems are required by code.

Key Features

• Malleable iron construction for durability and resistance to mechanical stress
• Partially insulated design protects conductor insulation at conduit termination points
• Lug screw connection provides secure fastening without special tooling
• Straight connector shape for direct, in-line conduit terminations
• 2-inch trade size fits standard rigid metal conduit and IMC of the same trade size

Compatibility

Designed as an OEM-style replacement fitting for 2-inch rigid metal conduit (RMC) and intermediate metal conduit (IMC) termination applications in commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for conduit terminations. De-energize the circuit and verify the panel or enclosure is locked out before beginning work. Thread the bushing onto the conduit end and tighten the lug screw securely before pulling conductors through. Inspect the insulated throat for any damage prior to installation to ensure conductor protection is maintained.
