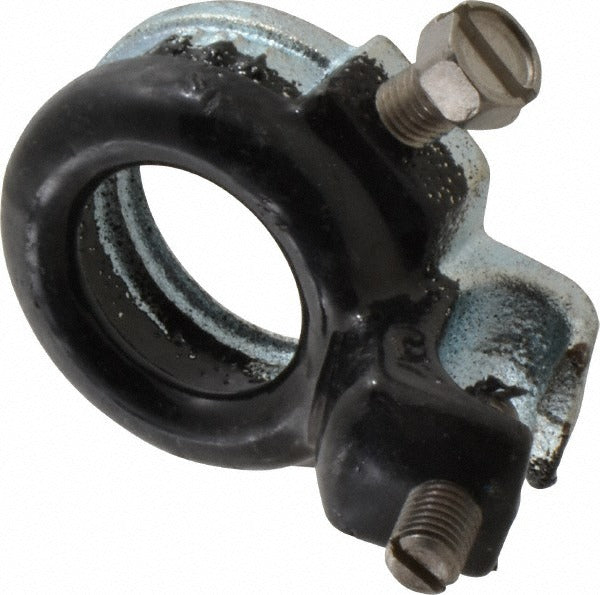

Thomas Betts BG075-14-4 Conduit Bushing 3/4 in Rigid Imc

Product Description

The THOMAS BETTS BG075-14-4 is a malleable iron conduit bushing designed for use with rigid metal conduit and intermediate metal conduit (IMC) at a 3/4 inch trade size. The bushing features partial insulation and a straight connector profile with a lug screw connection, providing a secure, low-profile transition at conduit termination points. Licensed electricians and electrical contractors install this fitting at enclosure knockouts, panel boxes, and junction boxes to protect wire insulation from the sharp edges of conduit ends. Its malleable iron construction provides durable mechanical strength in demanding commercial and industrial wiring environments.

This bushing is suited for rigid and IMC conduit installations in both commercial and light industrial settings. It is commonly installed at the point where conduit enters an enclosure, panel, or box, serving as the final fitting that protects conductors from abrasion at the conduit mouth. The lug screw connection method allows the installer to secure the bushing firmly against the enclosure wall without specialized tooling. The 3/4 inch trade size covers one of the most common conduit sizes found in branch circuit and feeder wiring work.

Key Features

• 3/4 inch trade size fits standard rigid and IMC conduit terminations
• Malleable iron construction provides high mechanical strength and impact resistance
• Partial insulation protects conductor insulation from conduit edge contact
• Lug screw connection secures bushing firmly at enclosure entry points
• Straight connector shape for direct, in-line conduit terminations

Compatibility

Designed as an OEM-style fitting for use with 3/4 inch trade size rigid metal conduit and intermediate metal conduit (IMC) systems.

Installation Notes

This fitting is installed by licensed electricians in accordance with National Electrical Code (NEC) requirements for conduit terminations at enclosures and panels. De-energize all circuits and verify the absence of voltage before beginning work at any panel or junction box. Thread or seat the bushing onto the conduit end before inserting conductors, and tighten the lug screw to secure the fitting against the enclosure wall. Inspect the insulating ring for damage before installation to ensure conductor protection is maintained.
