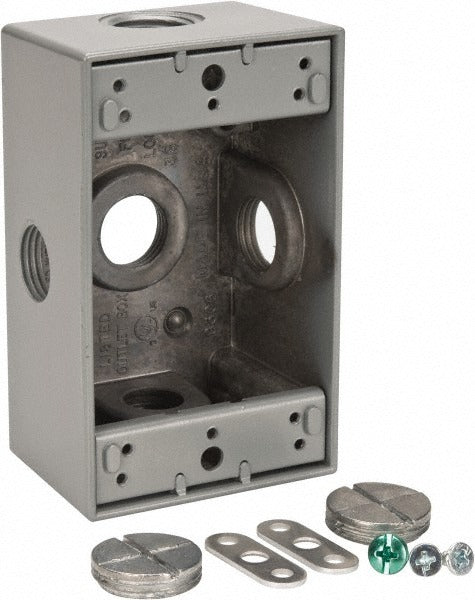

Thomas Betts B1501SGR Aluminum Outlet Box 1 Gang

Product Description

The THOMAS BETTS B1501SGR is a single-gang aluminum outlet box designed for electrical wiring installations requiring weather-resistant enclosure performance. Rated NEMA 3R, the box protects against rain, sleet, and external ice formation, making it suitable for outdoor and exposed locations. The rectangular aluminum body measures 4.5 inches in overall height, 2.5 inches in overall width, and 2 inches in overall depth. A powder-coated silver finish adds corrosion resistance. The box ships with a gasket, mounting lugs, plugs, and screws, providing the hardware needed for a complete installation. Licensed electricians are the primary installers of this enclosure.

The B1501SGR is suited for residential and light commercial electrical applications where a weatherproof single-gang outlet location is required. The horizontal and vertical mount options allow flexible positioning on exterior walls, junction points, or conduit-fed service locations. Five half-inch knockouts support common conduit entry configurations. It meets CSA Certified, Federal Specification W-C-586, and UL Listed standards, making it appropriate for work subject to inspection under the National Electrical Code.

Key Features

• NEMA 3R rating provides weather-resistant protection for outdoor installations
• Aluminum body with powder-coated silver finish resists corrosion
• Five half-inch knockouts for flexible conduit entry
• Supports both horizontal and vertical mounting orientations
• Includes gasket, mounting lugs, plugs, and screws for complete installation
• CSA Certified, UL Listed, and meets Federal Specification W-C-586

Compatibility

Designed as an OEM-style single-gang outlet box for standard electrical wiring applications requiring NEMA 3R weather-resistant enclosures with half-inch conduit knockouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit and verify absence of voltage before beginning work. Seal conduit entries and the box gasket properly to maintain the NEMA 3R weather rating. Do not overtighten mounting hardware in a way that deforms the aluminum body or compromises the gasket seal.
