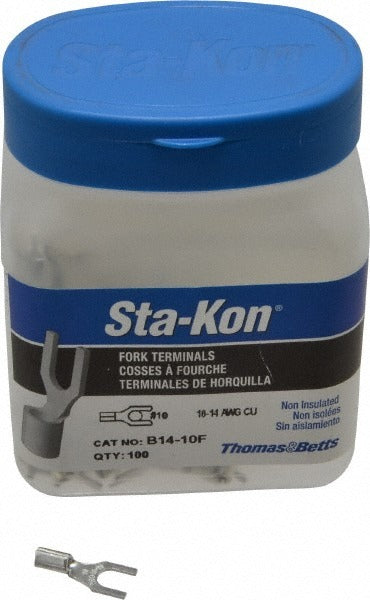

Thomas Betts B14-10F Fork Terminal 600V No. 10 Stud Crimp

Product Description

The THOMAS BETTS B14-10F is a standard non-insulated fork terminal designed for crimp-style wire termination in electrical wiring applications. Rated at 600 volts, this terminal accepts a No. 10 stud and features a fork width of 0.31 inches and an overall length of 0.75 inches. The contact is made from copper with a TiN (titanium nitride) plating for reliable conductivity and corrosion resistance. It ships in quantities of 100 per package. Licensed electricians and panel technicians install these terminals using standard crimping tools to create secure, low-resistance connections in control panels, junction boxes, and equipment wiring.

This fork terminal is suited for residential, commercial, and light industrial electrical work where a non-insulated crimp lug is required at a No. 10 screw or stud termination point. The blue color coding aids in wire gauge identification and organization during installation. Typical applications include motor control wiring, terminal strip connections, and equipment grounding or bonding assemblies where a reliable mechanical and electrical connection to a screw terminal is needed.

Key Features

• 600-volt rating suitable for standard branch circuit and control wiring applications
• No. 10 stud size fits common machine screws and terminal block studs
• Copper contact with TiN plating for conductivity and corrosion resistance
• Non-insulated design allows post-crimp inspection of the wire termination
• Fork width of 0.31 inches provides a secure seat on the stud
• Meets UL 486A, UL 486B, CSA 22.2, and RoHS compliance requirements

Compatibility

Designed as a standard crimp-style fork terminal for use with No. 10 studs and screws in residential, commercial, and light industrial electrical panels and equipment wiring assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit completely before terminating or replacing any wiring connections. Use a calibrated ratcheting crimp tool rated for the terminal type to ensure a proper crimp that meets manufacturer and code requirements. Do not over-crimp or use pliers as a substitute for a proper crimping tool, as this can degrade the connection and void listings.
