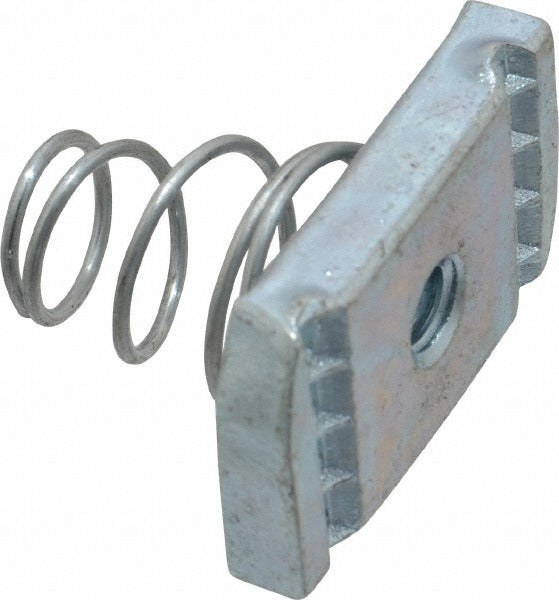

Thomas Betts B-100-1/4 Short Spring Nut 1/4 in Strut

Product Description

The THOMAS BETTS B-100-1/4 is a short spring nut designed for use with strut channel systems. It provides a secure, adjustable fastening point within the channel track, allowing threaded fasteners to be positioned and repositioned without disassembling the channel. Constructed from steel with an electro galvanized finish, it resists corrosion in typical indoor mechanical and electrical installations. The nut accepts a 1/4-20 threaded bolt and is rated for use exclusively with Thomas Betts Channel Type B. Electricians and mechanical contractors use this hardware when securing conduit, pipe hangers, cable trays, and equipment to strut channel support systems.

This short spring nut is suited for residential and commercial electrical, HVAC, and plumbing support applications where strut channel is used as the primary structural support. It fits into Channel Type B strut track and holds position until a bolt is tightened, which speeds up layout and adjustment during installation. Cross-reference part numbers include Unistrut P4006-1420 and B-Line N524, making it a compatible replacement option across multiple strut channel product lines where those designations apply.

Key Features

• Short spring nut profile for use in Thomas Betts Channel Type B strut
• 1/4-20 inch thread size accepts standard 1/4 inch bolts
• Steel construction with electro galvanized finish for corrosion resistance
• Spring-loaded design holds nut in place before bolt is tightened
• Cross-references to Unistrut P4006-1420 and B-Line N524

Compatibility

Designed for use exclusively with Thomas Betts Channel Type B strut. Cross-reference part numbers Unistrut P4006-1420 and B-Line N524 are listed in the supplier data as equivalent references.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working with strut channel support systems. Insert the spring nut into the channel track and rotate to engage before threading the bolt. De-energize any nearby electrical systems before working in panel or raceway areas where strut is mounted. Follow NEC guidelines for support spacing when securing conduit or electrical equipment to strut channel.
