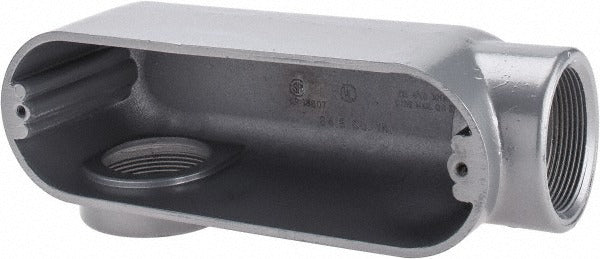

Thomas Betts ALR-6 Lr Conduit Body 2 Inch Imc Rigid Aluminum

Product Description

The THOMAS BETTS ALR-6 is an LR-style conduit body designed for use with 2-inch trade size IMC and rigid aluminum conduit systems. This oval-shaped body provides a pull point and directional change in conduit runs, with an overall length of 8-9/16 inches and an internal volume capacity of 69-1/2 cubic inches. Constructed from aluminum with a gray finish, it is weather resistant and suited for installation in demanding environments. Licensed electricians working on commercial and industrial conduit systems install this fitting as part of code-compliant raceway assemblies.

The ALR-6 is used in 2-inch IMC and rigid conduit installations across commercial, industrial, and infrastructure applications. The LR configuration allows a 90-degree horizontal change of direction in a conduit run while providing access for wire pulling and splicing. Its oval body profile and 69-1/2 cubic inch capacity support conductor fill requirements under NEC guidelines. This fitting is appropriate for exposed or concealed raceway systems where weather resistance is a factor.

Key Features

• LR body configuration for 90-degree horizontal direction changes in conduit runs
• 2-inch trade size, compatible with IMC and rigid conduit systems
• 69-1/2 cubic inch internal volume capacity for conductor fill compliance
• Oval body shape with overall length of 8-9/16 inches
• Weather-resistant aluminum construction with gray finish
• UL Listed (File E28688) and RoHS compliant

Compatibility

Designed for use with 2-inch trade size IMC and rigid aluminum conduit systems. Verify conduit type and trade size before installation to confirm fitment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize all circuits in the raceway before opening or working within the conduit body. Secure all covers and gaskets properly after wire pulling or splicing to maintain the weather-resistant rating. Ensure conductor fill does not exceed the rated 69-1/2 cubic inch capacity as calculated per NEC Article 314.
