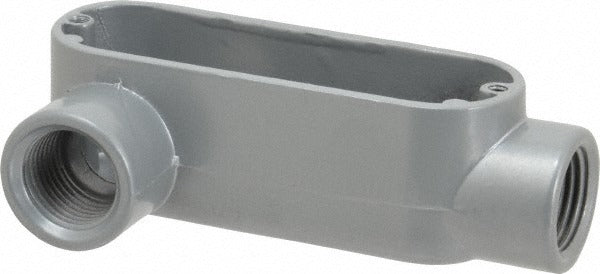

Thomas Betts ALR-1 Lr Conduit Body 0.5 Inch Aluminum Imc

Product Description

The THOMAS BETTS ALR-1 is an LR-style conduit body designed for use with 1/2 inch trade size IMC and rigid aluminum conduit systems. Constructed from aluminum with an oval shape, this conduit body provides a pull point and directional change in conduit runs. It carries a 4.3 cubic inch volume capacity and measures 3.5 inches overall length. The gray finish and weather-resistant construction make it suitable for both indoor and outdoor installations. Licensed electricians and conduit installers use this fitting as part of raceway systems where wire pulling access or 90-degree direction changes are required.

This conduit body is rated for IMC and rigid conduit applications at 1/2 inch trade size. It is appropriate for residential, commercial, and light industrial electrical installations where aluminum conduit is the specified raceway material. The oval body profile fits standard LR configurations, allowing the conduit run to change direction while maintaining conductor access through the removable cover. Typical use cases include service entrance raceways, exposed conduit runs in commercial buildings, and outdoor feeder or branch circuit installations where weather resistance is required.

Key Features

• LR body configuration for 90-degree directional changes in conduit runs
• 1/2 inch trade size fits standard IMC and rigid aluminum conduit
• 4.3 cubic inch volume capacity for conductor fill compliance
• Oval shape with 3.5 inch overall length
• Weather-resistant construction for indoor and outdoor use
• RoHS compliant and UL Listed under File E28688

Compatibility

Designed for use with 1/2 inch trade size IMC and rigid aluminum conduit systems per UL listing requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits before opening or working within any conduit body. Ensure conductor fill does not exceed the 4.3 cubic inch rated capacity of this body when calculating wire fill per NEC Article 314. Secure the cover with the appropriate fasteners and verify the gasket or seal is properly seated when installing in wet or outdoor locations.
