Thomas Betts ALL-5 Ll Conduit Body 1-1/2 Inch Imc Aluminum

Product Description

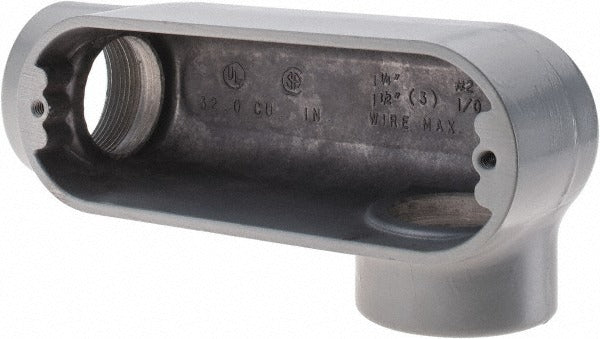

The THOMAS BETTS ALL-5 is an LL-type aluminum conduit body designed for 1-1/2 inch trade size IMC and rigid conduit systems. The oval body profile provides a 32 cubic centimeter wire capacity, giving electricians adequate room to pull conductors through directional changes without exceeding fill limits. Cast aluminum construction keeps weight low at 1.57 pounds while delivering corrosion resistance suited to exposed or outdoor installations. The gray finish is standard for aluminum conduit fittings. This fitting is installed by licensed electricians on commercial and industrial conduit runs where a 90-degree directional change with rear access is required.

The ALL-5 is applied in EMT, IMC, and rigid metallic conduit systems where an LL body configuration routes conduit through interior corners or along walls and ceilings. Its weather-resistant design makes it suitable for damp or wet location conduit installations in commercial buildings, industrial facilities, and outdoor exposed runs. The 6-1/2 inch overall length accommodates standard conduit hubs at both entry and exit ports.

Key Features

• LL body type for 90-degree left-turn directional changes with rear access cover
• 1-1/2 inch trade size fits IMC and rigid aluminum conduit
• 32 cubic centimeter (cc) wire fill capacity
• Oval shape with 6-1/2 inch overall length
• Weather-resistant aluminum construction
• UL Listed (File E28688) and RoHS Compliant

Compatibility

Designed as an OEM-style fitting for 1-1/2 inch trade size IMC and rigid aluminum conduit systems. Compatible with standard threaded rigid and IMC conduit hubs of the same trade size.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize all circuits before opening or working near the conduit body. Ensure conductor fill does not exceed the rated 32 cc capacity per NEC fill rules. The cover and gasket should be fully seated and hardware tightened to maintain the weather-resistant rating after wire pulling is complete.
