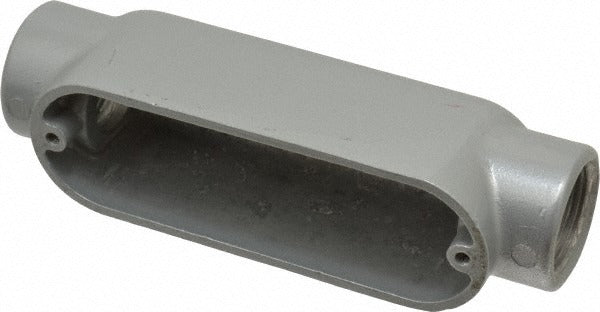

Thomas Betts AC-2-RD C Body Conduit 3/4 Inch Imc Rigid

Product Description

The THOMAS BETTS AC-2-RD is an aluminum C-body conduit body designed for use with 3/4 inch trade size IMC and rigid metal conduit systems. This oval-shaped pull and junction point provides 7.3 cubic inches of usable interior volume, giving electricians adequate wire bending space when pulling conductors or making splices. The gray aluminum housing is rated weather resistant, making it suitable for both indoor and outdoor installations. Licensed electricians and conduit installers work with this fitting during roughing-in phases of commercial and industrial wiring projects where rigid or IMC conduit runs require directional changes or access points.

The AC-2-RD is used in 3/4 inch IMC and rigid aluminum conduit installations across residential service entrances, light commercial builds, and industrial panel feeds. The C-body configuration allows inline access from one side, which is common when installers need a pull point on a straight conduit run without adding a full junction box. Its weather-resistant construction makes it appropriate for exterior conduit runs and damp or wet locations where conduit bodies must hold up to environmental exposure.

Key Features

• C-body form factor provides single-side access for wire pulls and splices on straight conduit runs
• 7.3 cubic inch interior volume supports NEC fill requirements for common conductor counts
• Oval shape with 5-1/8 inch overall length allows efficient routing in tight spaces
• Weather-resistant aluminum construction rated for damp and wet location use
• UL Listed under File E28688 for code-compliant installations
• RoHS compliant materials

Compatibility

Designed for use with 3/4 inch trade size IMC and rigid metal conduit systems. Fits standard 3/4 inch threaded conduit hubs per applicable UL and NEC conduit body standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits before opening or working inside the conduit body. Ensure conductor fill does not exceed the rated 7.3 cubic inch volume per NEC Article 314 conduit body fill rules. Apply appropriate listed conduit thread sealant if the assembly will be exposed to moisture or used in a wet location.
