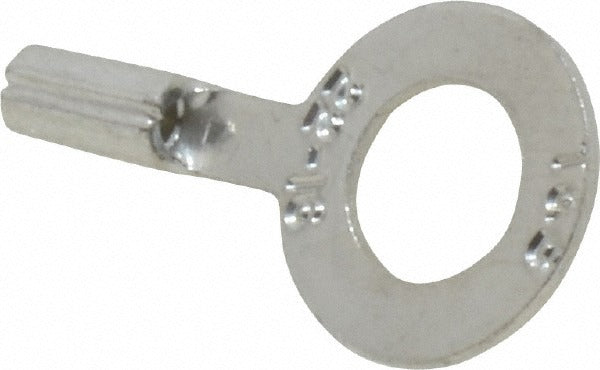

Thomas Betts A18-14 Ring Terminal 22-16 Awg Crimp 100 Pack

Product Description

The THOMAS BETTS A18-14 is a non-insulated, D-shaped ring terminal designed for crimp connections on copper conductors ranging from 22 to 16 AWG. The contact is made from copper with a TiN (titanium nitride) plating for reliable conductivity and corrosion resistance. The terminal measures 0.92 inches in overall length and 0.5 inches in ring width, fitting a 1/4-inch stud. It meets UL 486A, UL 486B, CSA 22.2, and RoHS compliance standards, making it appropriate for use in panels, control wiring, and equipment grounding applications installed by licensed electricians and controls technicians.

This ring terminal is suited for low-voltage control wiring, HVAC equipment connections, and general electrical panel work in both residential and light commercial settings. Its non-insulated design is intended for use where a separate insulating sleeve or close-tolerance wire management is already in place. The 1/4-inch stud size is a common fit for terminal blocks, bus bars, and equipment ground lugs. Each package contains 100 terminals, making it practical for production wiring and service work alike.

Key Features

• Crimp connection type for fast, reliable termination without soldering
• Accepts 22 to 16 AWG wire for versatile control and power wiring applications
• Copper contact with TiN plating for conductivity and corrosion resistance
• 1/4-inch stud size fits common terminal blocks, bus bars, and equipment lugs
• Non-insulated design for use in sleeved or close-managed wiring assemblies
• Meets UL 486A, UL 486B, CSA 22.2, UL 94 V-0, and RoHS requirements

Compatibility

Designed for crimp termination on 22 to 16 AWG copper conductors to 1/4-inch studs. Compatible with standard ratchet or die-style crimping tools rated for non-insulated ring terminals in this wire range.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for wire terminations. De-energize the circuit completely before crimping or landing any terminal. Use a calibrated ratchet crimping tool with the correct die set for non-insulated terminals and the applicable wire gauge — do not use pliers or uncalibrated tools, as an improper crimp can result in a high-resistance connection or pull-out failure. Inspect the completed crimp for full conductor insertion and barrel deformation before closing the panel or enclosure.
