Thomas & Betts 702-3/4 Superstrut 2-Piece Rigid/IMC Conduit Clamp 3/4 in.

Product Description

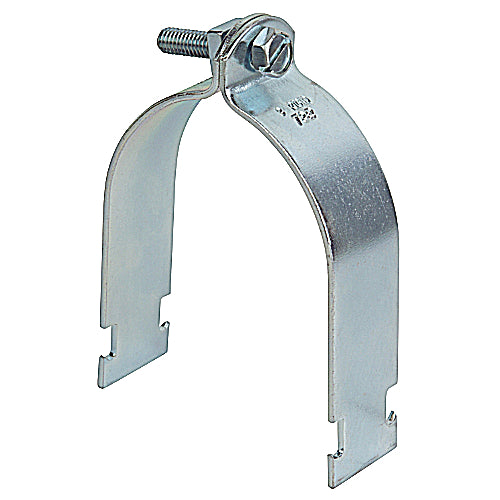

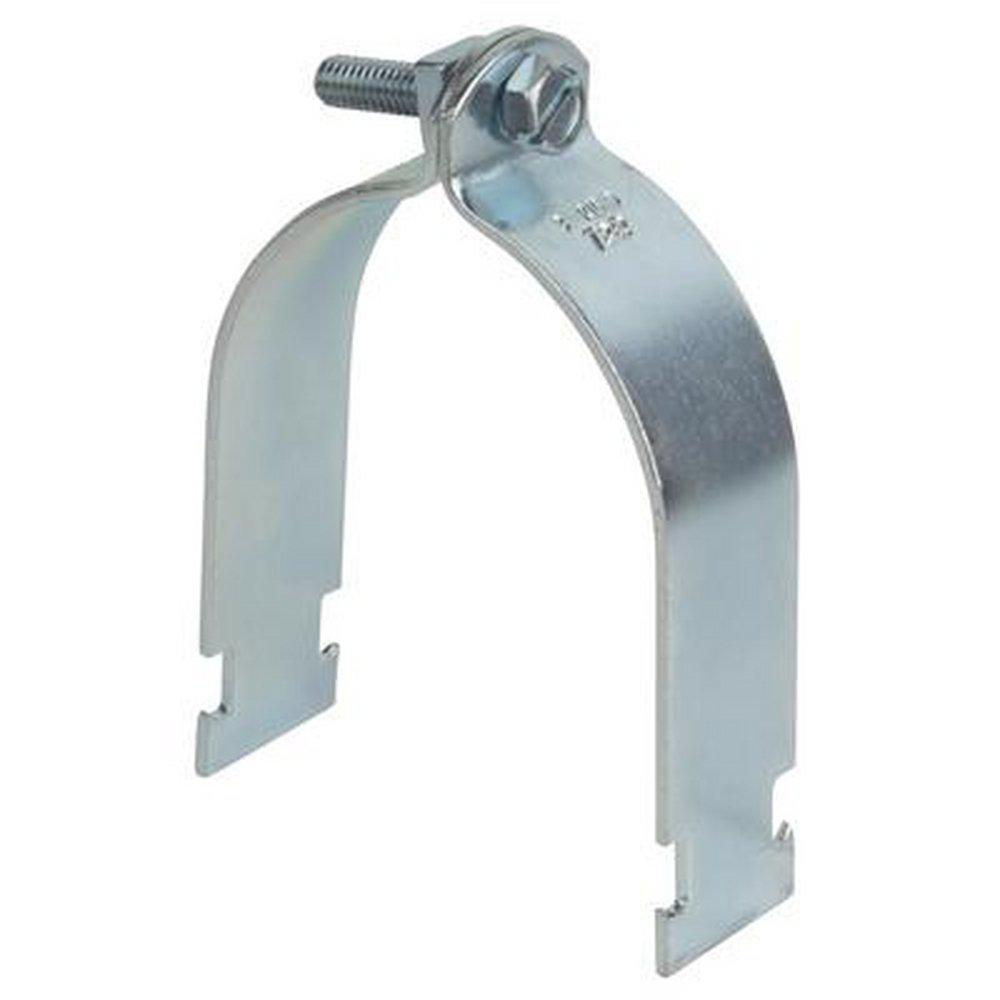

The Thomas & Betts 702-3/4 Superstrut 2-Piece Rigid/IMC Conduit Clamp is designed for rigid or IMC conduit, pipe, and electrical metal tubing. This 3/4 inch, 14-gauge steel strap features a square nut captivated on the shoulder for easy one-handed tightening. It is designed to be twist inserted anywhere along the slot side of the channel.

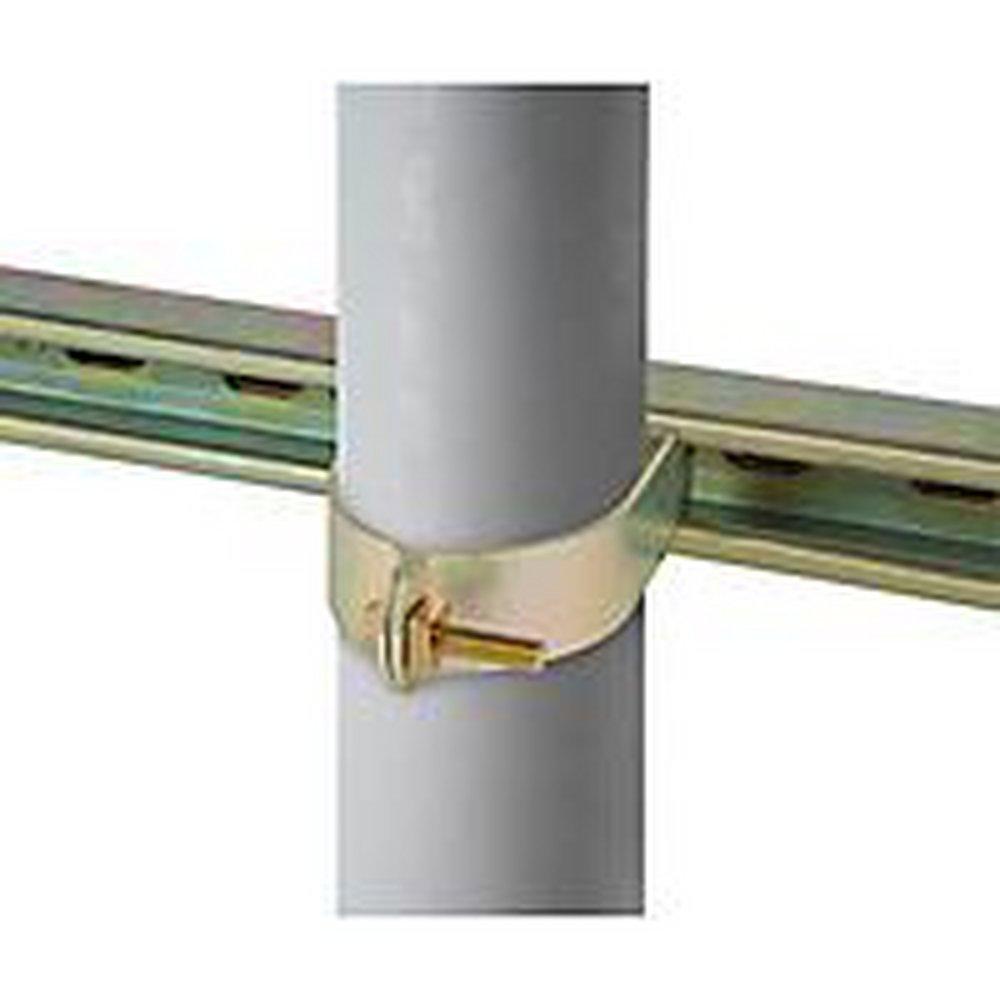

• Designed to be twist inserted anywhere along the slot side of the channel.
• Square nut is captivated on the shoulder for easy one-handed tightening.
• Straps are interchangeable with 1-1/2 Inch strut, for broader application.
• Pipe and conduit sizes are shown on the strap for easy identification.

Product Highlights

The Superstrut pipe straps are designed for easy installation and broad application with 1-1/2 inch strut compatibility. The bolt head features a combination slot and hex head for flexibility.

Product Information

Standard Information

• Brand: THOMAS & BETTS
• Manufacturer Part Number: 702-3/4
• Country of Origin: US

Technical Specifications

• Fits Pipe Size: 3/4 in
• Gauge (metal): 14
• Material: Steel
• Application: Superstrut Pipe Straps are designed to be twist inserted anywhere along the slot side of the channel.
• Brand Name: Thomas & Betts
• Finish: Electro-Galvanized
• Special Features: 2-piece construction 3 safety factor 750 lb design load Bolt head is combination slot and hex head for flexibility of attachment Pipe and conduit sizes are shown on the strap for easy identification Square nut is captivated on the shoulder for easy one handed tightening Straps are interchangeable with 1-1/2 in strut for broader application Straps are shipped assembled so counting and sorting are easier
• Sub_Brand: Superstrut
• Type: Pipe Straps, Pipe Clamps & Hangers (Series 700)
• Outer Diameter Size: 1.050 Inches
• Country of Origin: US
