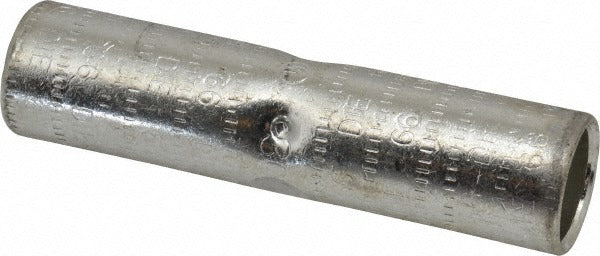

Thomas Betts 54814 Butt Splice Terminal 300 Mcm Crimp-on

Product Description

The THOMAS BETTS 54814 is a non-insulated, crimp-on butt splice terminal rated for 300 MCM wire. It provides a reliable inline connection between two conductors using a compression crimp method. The terminal is constructed from copper contact material with a TiN (titanium nitride) contact plating for corrosion resistance and conductivity. At 3.5 inches overall length and 0.87 inches overall diameter, this splice is sized for large-gauge conductors found in high-current power distribution runs. It accepts two wire entries, one from each end, making it a standard inline butt splice configuration. Electricians and electrical contractors working on commercial, industrial, or utility installations are the primary installers.

This terminal is suited for large-conductor applications including service entrance wiring, feeder runs, motor leads, and industrial power distribution where 300 MCM conductors require a secure, low-resistance inline splice. The non-insulated design allows the installer to apply heat-shrink or tape insulation appropriate to the installation environment and local code requirements. The white color coding corresponds to the 300 MCM wire gauge range for visual identification in the field.

Key Features

• Non-insulated crimp-on construction for large-gauge 300 MCM conductors
• Copper contact material with TiN plating for conductivity and corrosion resistance
• Two-entry inline butt splice design accepts one conductor per end
• 3.5 inches overall length and 0.87 inches overall diameter
• CSA Certified, UL Listed, and RoHS Compliant

Compatibility

Designed for use with 300 MCM copper conductors in crimp-on butt splice applications.

Installation Notes

Installation of large-gauge butt splices should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before stripping conductors or seating the splice. Use a calibrated crimping tool rated for the terminal size to achieve a proper compression connection. After crimping, apply listed insulation protection suitable for the installation environment.
