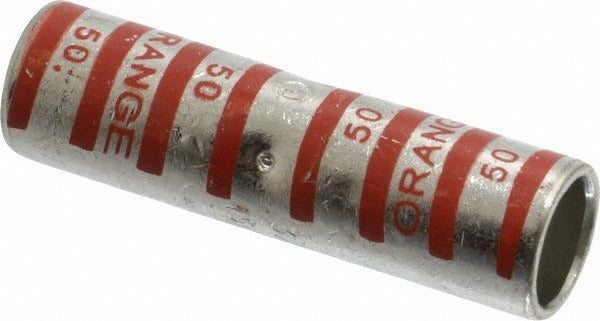

Thomas Betts 54811 Non-insulated Butt Splice Terminal

Product Description

The THOMAS BETTS 54811 is a non-insulated, crimp-on butt splice terminal designed to create secure inline wire connections in electrical installations. Manufactured with a copper contact body and a titanium nitride (TiN) contact plating, this terminal delivers reliable conductivity and corrosion resistance in demanding environments. At 2.25 inches overall length and 0.65 inches overall diameter, it accommodates two wire entries for a straightforward inline splice. Electricians and electrical contractors install this type of terminal when joining two conductors end-to-end without the need for an insulated sleeve.

This butt splice terminal is suited for residential, commercial, and light industrial electrical work wherever crimp-on inline splices are required. Its non-insulated design is appropriate for applications where a separate heat-shrink or insulating sleeve will be applied over the finished crimp, or where the installation environment and circuit voltage allow an exposed splice per applicable code. The orange color coding aids in quick identification during panel work, junction box assembly, or harness fabrication.

Key Features

• Non-insulated crimp-on design for fast, tool-based inline wire splicing
• Copper contact material with TiN plating for conductivity and corrosion resistance
• 2.25-inch overall length with 0.65-inch overall diameter
• Two wire entries for standard inline butt splice configuration
• Orange color coding for visual identification in the field
• CSA Certified, RoHS Compliant, and UL Listed

Compatibility

Designed as an OEM-style crimp-on butt splice terminal for inline wire splicing in electrical systems. Verify wire gauge range against applicable wiring diagrams before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit and verify the absence of voltage before making any splice connection. Use a calibrated ratchet crimp tool rated for non-insulated terminals to ensure a gas-tight crimp. Do not attempt to install with pliers or uncalibrated tooling, as an improper crimp can result in high-resistance connections or pull-out failure.
