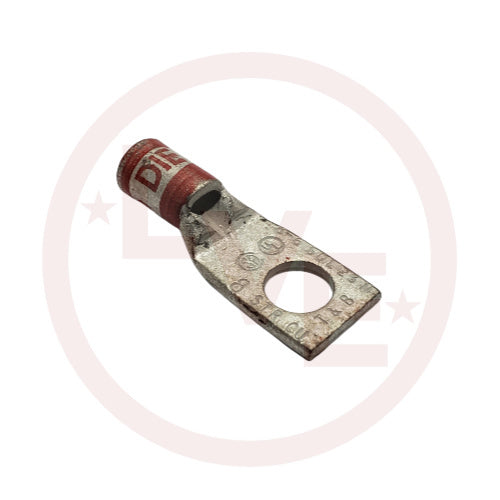

THOMAS & BETTS 54130 Compression Lug 8 AWG 1 Hole Red

Product Description

The THOMAS & BETTS 54130 is a compression lug designed for use with an eight AWG copper conductor. This one-hole, non-insulated lug has a straight tongue and standard barrel for reliable performance. It is made from copper and features a tin-plated finish for enhanced durability. The lug is part of the 54100 series and marked with a die code of twenty-one with a red color code for easy identification. It accommodates a one-fourth inch stud.

• Designed for 8 AWG copper conductors
• Features a hole for 1/4 inch stud
• Constructed from copper with a tin-plated finish

Product Highlights

The THOMAS & BETTS compression lug offers secure connections, essential for effective electrical installations.

Product Information

Standard Information

• Manufacturer: Thomas & Betts
• MPN: 54130

Technical Specifications

• Series: 54100
• Conductor Size: 8 AWG
• Stud Size: 1/4 inch
• Voltage Rating: 35 kV
• Material: Copper
• Plating: Tin Plated
• Barrel Type: Standard
• Hole Quantity: 1
• Die Code: 21
• Color: Red
• Tongue Type: Straight
• Overall Length: 1.2 inches
• Barrel Size: 1/4 inch Diameter
• Mounting Hole Size: 0.281 inches
• Tongue Size: 0.61 inches L x 0.45 inches W x 0.07 inches Thickness
• Insulation: Non-Insulated
