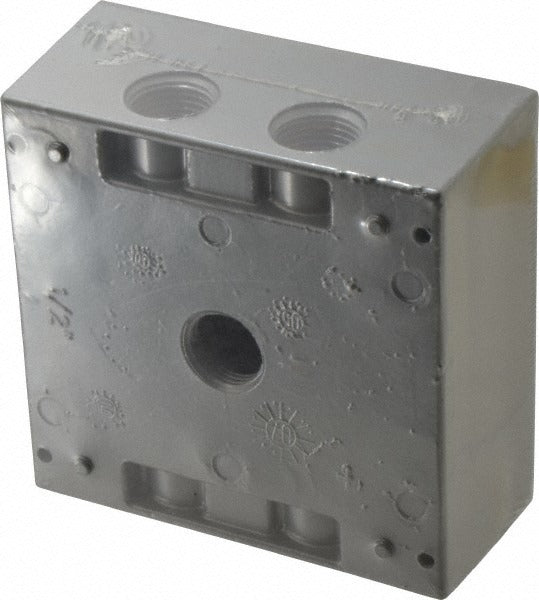

Thomas Betts 2IH5-1 Square Outlet Box 2 Gang Aluminum

Product Description

The THOMAS BETTS 2IH5-1 is a two-gang square aluminum outlet box designed for residential and commercial electrical installations requiring weather-resistant enclosure performance. Constructed from powder-coated aluminum with a silver finish, this box carries a NEMA 3R rating, making it suitable for locations exposed to rain and exterior moisture. It measures 4-9/16 inches in height, 4-5/8 inches in width, and 2-1/16 inches in depth. Screw-mount installation keeps the box secure to standard framing or structural surfaces. Licensed electricians and electrical contractors are the typical installers for this type of enclosure.

This outlet box is suited for both residential and light commercial wiring applications where a weatherproof two-gang enclosure is required. It accommodates standard duplex receptacles or other two-gang device configurations. The five 1/2-inch knockouts provide flexible conduit entry points from multiple directions, supporting rigid or flexible metallic conduit runs. The box ships with two closure plugs and ground screws, reducing the need for separate hardware at installation time. It is appropriate for surface-mount applications on exterior walls, garages, utility areas, and similar exposed or semi-exposed environments.

Key Features

• NEMA 3R rated for weather-resistant performance in rain-exposed locations
• Two-gang configuration accepts standard duplex receptacles or two-gang devices
• Five 1/2-inch knockouts for flexible conduit routing
• Powder-coated aluminum body resists corrosion and physical damage
• Includes two closure plugs and ground screws
• CSA Certified and UL Listed to UL File 28688 and UL File E2969

Compatibility

Designed as an OEM-style replacement or new-installation enclosure for two-gang square outlet box applications requiring NEMA 3R weather-resistant aluminum construction and 1/2-inch knockout conduit entry.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage before beginning any work. Use appropriate conduit fittings at each knockout entry point to maintain the NEMA 3R enclosure rating. Seal unused knockouts with the included closure plugs to preserve weather resistance.
