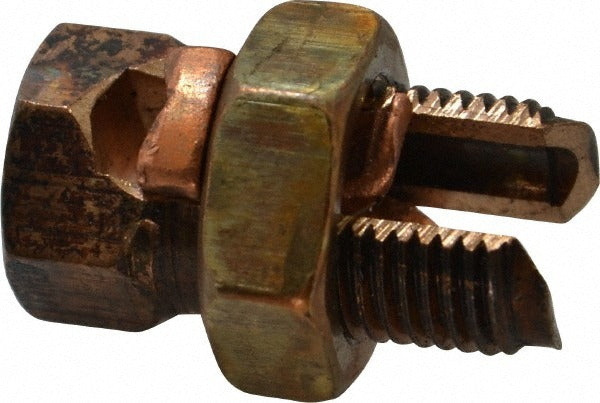

Thomas Betts 2H Hex Split Bolt Connector 6 to 2 Awg

Product Description

The THOMAS BETTS 2H is a hex split bolt connector designed for making reliable tap and splice connections in copper wire installations. Constructed from copper alloy, this connector provides solid electrical contact and long-term corrosion resistance in branch circuit and service entrance work. The split bolt design accepts conductors ranging from 6 AWG to 2 AWG, allowing electricians to join a main run conductor to a tap conductor without cutting the main. Overall length is 1.25 inches, head width is 0.594 inches, and base width is 0.781 inches. It ships as a single unit and is suited for residential and light commercial electrical work.

This connector is used wherever copper-to-copper tap connections are required, including panelboard feeders, service entrance splices, meter base work, and junction box connections. The hex head design allows standard hex wrench or lineman pliers to apply consistent clamping torque across both conductors. Electricians working to NEC guidelines will find this connector appropriate for use in dry, damp, or wet locations when combined with suitable insulating tape or pre-insulated covers per local code requirements.

Key Features

• Accepts 6 AWG to 2 AWG copper conductors for tap and splice applications
• Copper alloy construction resists corrosion and maintains conductivity over time
• Hex head design compatible with standard hex wrenches and lineman pliers
• Compact overall length of 1.25 inches suits tight junction box installations
• Single-piece split bolt design eliminates need to cut the main run conductor

Compatibility

Designed for use with copper wire only, rated for conductor sizes 6 AWG through 2 AWG. Consult local code authority for approved insulation methods when installed in wet or damp locations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC Article 110 and applicable local codes. De-energize and lock out the circuit at the panel before making any connections. Insert the main conductor through the bolt opening and position the tap conductor alongside it before tightening the hex nut to achieve firm mechanical and electrical contact. Do not over-torque the connector, as this can deform copper conductors and reduce contact integrity.
