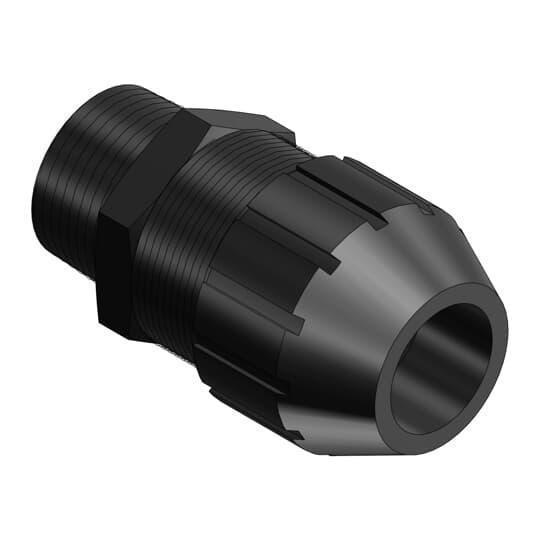

THOMAS & BETTS 2709 Liquidtight Strain Relief Connector

Product Description

The THOMAS & BETTS 2709 is a liquidtight strain relief connector. It is designed for connecting flexible cord or cable to an enclosure. This straight connector offers strain relief and ensures a liquidtight seal with flexible cords to boxes or enclosures.

• Provides liquidtight connection and strain relief.
• Features a segmented chuck for high mechanical pull-out performance.
• Constructed with corrosion-resistant materials for indoor and outdoor use.

Product Highlights

This connector is suitable for use in hazardous locations.

Product Information

Standard Information

• Brand Name: THOMAS & BETTS
• Manufacturer Name: ABB

Technical Specifications

• MPN: 2709
• Type: Liquidtight Strain Relief Straight
• Thread Size: 2 inches
• Cord Size: 1.52 to 1.86 inches
• Material: Molded Black Nylon Body, Molded Thermoplastic Gland and Segmented Chuck, Molded Neoprene Bushing
• Dimensions: 4.9 inches L x 3.5 inches W
• Operating Temperature: -34 to 105 degrees C
• Cable Type: SV/SO
• Connection Type: Threaded
• Application: Hazardous Location
• Approval: UL, CSA
• UNSPSC: 39121431
