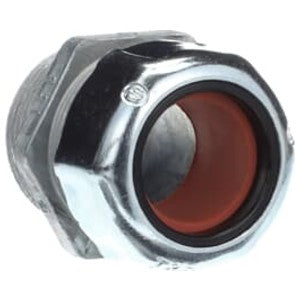

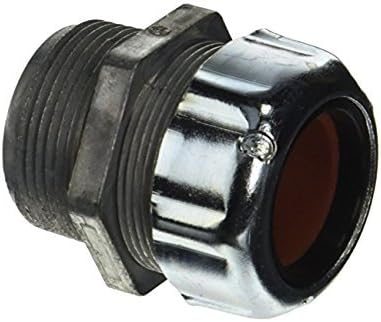

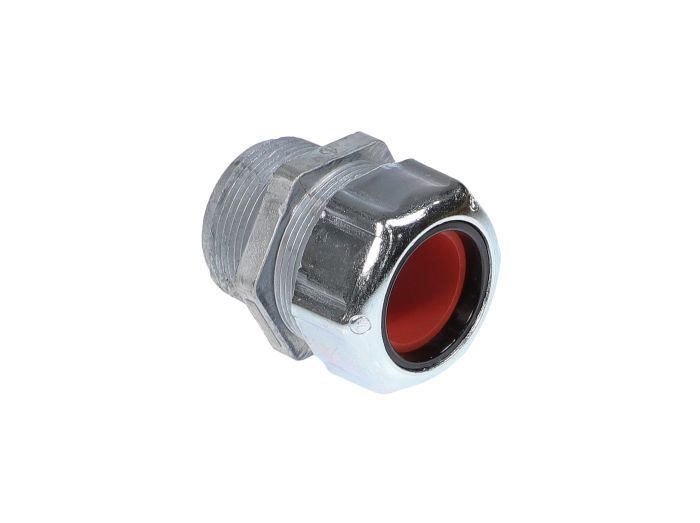

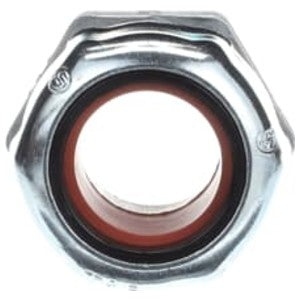

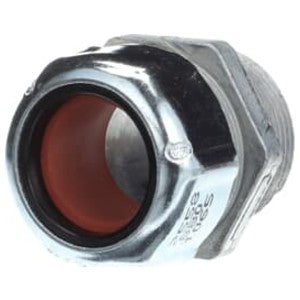

Thomas & Betts 2558 Cable Gland NPT 1-1/4 in

Product Description

The Thomas & Betts 2558 is a liquidtight strain relief connector that links cables to a one and one-quarter inch conduit hub. This connector is suitable for cords ranging from zero point eight eight zero to one point zero six five inches in diameter. It is made from die cast zinc for durability and provides a reliable seal against water and oil.

• Liquidtight strain relief connector
• Accommodates cord sizes from 0.880 to 1.065 inches
• NPT thread size of 1-1/4 inch

Product Highlights

This product is designed for secure cable connections in various applications, providing protection against liquids and gases while ensuring a solid mechanical grip.

Product Information

Standard Information

• Manufacturer Part Number: 2558
• Brand: Thomas & Betts

Technical Specifications

• Thread Size: NPT 1-1/4 inch
• Accepted Cable Diameter: 0.880-1.065 inches
• Bushing Material: Neoprene
• Material: Zinc Die-Cast
• Standards: UL Listed
• Connector Type: Coupling
• Part Number: 2558
• Conduit/Cable Type: Armored Cable, Flexible Cord
• Connection Type: Compression
• Temperature Rating: 105 degrees C
• Application: Suitable for hazardous locations as per NEC 501-4(b)
